12 inch Fan-less fully enclosed design industrial displays

Short Description:

Industrial display adopts all-aluminum alloy structure, fan-less fully closed design scheme, the whole machine is low power consumption, compact shape, is specially designed for a variety of environmental industrial products, can ensure a long time stable work in harsh environment.

Model:CPT-120M1BC3
Screen Size：12 inch
Screen Resolution:1024*768
Product size:317*252*62mm
N.W. :3.5KG

Download as pdf Send email to us

Product Detail

PRODUCT INTRODUCTION

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product description:

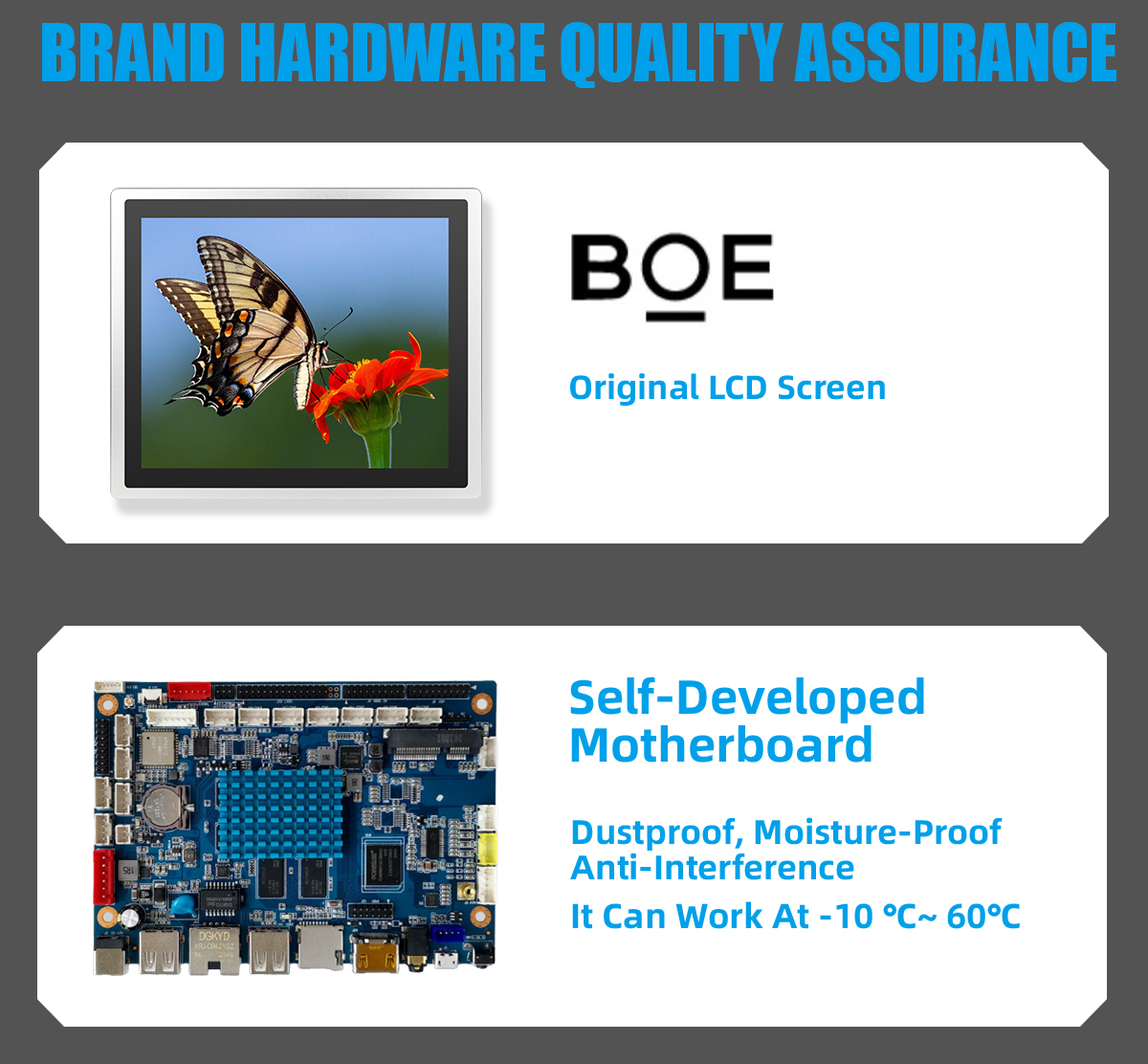

Industrial display in the whole machine materials, we pay more attention to its reliability, environmental adaptability, real-time, scalability, EMC compatibility and other performance, configuration of RTD2556 chip, with a variety of high-definition display interface, meet the needs of a variety of application interface, provide a variety of work efficiency, Widely used in industrial control, military, communications, power, network and other high-end automation fields.

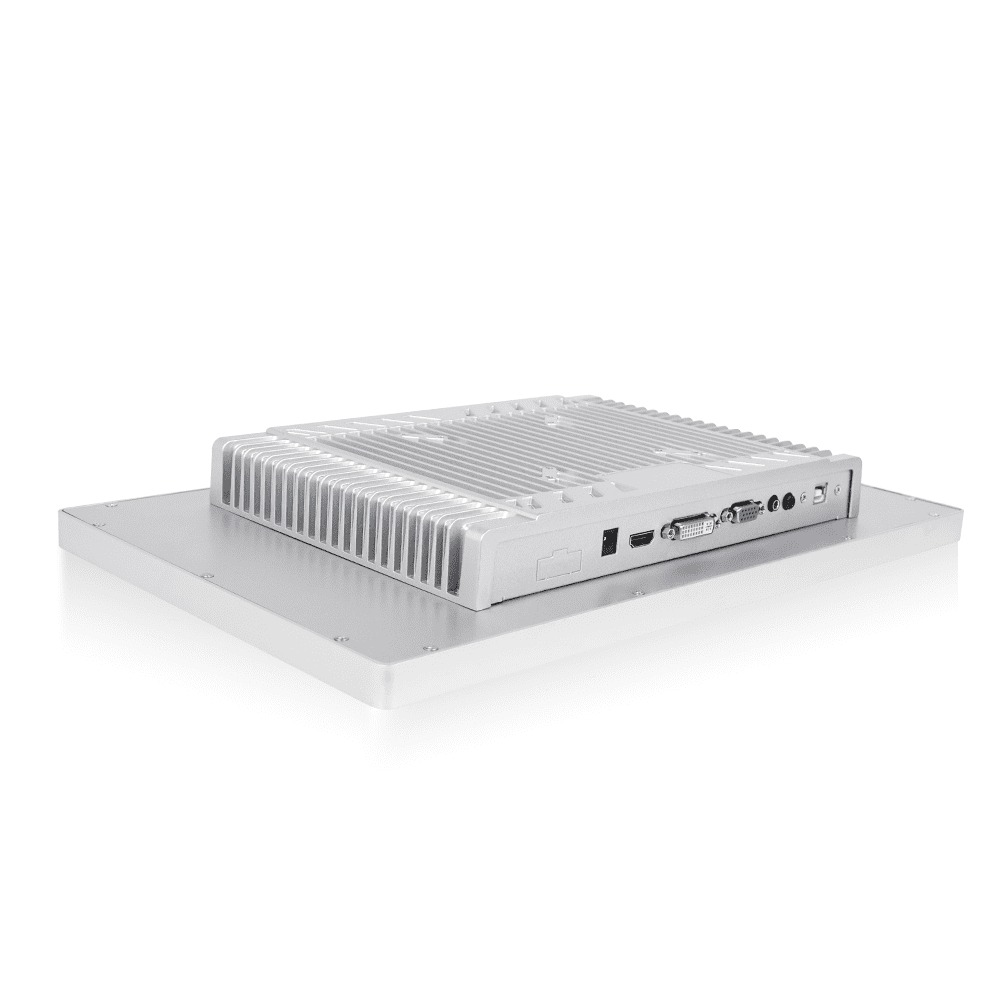

Fan-less fully enclosed design for industrial displays2

Fan-less fully enclosed design for industrial displays3

Fan-less fully enclosed design for industrial displays4

Parameter information:

Display	Screen Size	12 inch
	Screen Resolution	1024*768
	Luminous	400 cd/m2
	Color Quantitis	16.2M
	Contrast	500:1
	Visual Range	89/89/89/89 (Typ.)(CR≥10)
	Display Size	246(W)×184.5(H) mm
Touch parameter	Reaction Type	Electric capacity reaction
	Lifetime	More than 50 miliion times
	Surface Hardness	＞7H
	Effective Touch Strength	45g
	Glass Type	More than 50 miliion times
	Luminousness	＞85%
Parameter	Power suplier mode	12V/5A external power adapter / industral interface
	Power specs	100-240V，50-60HZ
	Imput voltage	9-36V/12V
	Anti-static	Contact discharge 4KV-air discharge 8KV（customization available≥16KV）
	Rate of work	≤40W
	Vibration proof	GB242 standard
	Anti-interference	EMC\|EMI anti-electromagnetic interference
	Protection	Front panel IP65 dustproof waterproof
	Color of shell	Black
	Install mode	Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
	Environment temperature	<80%,Condesation forbidden
	Working temperature	Working：-10°~60°；Storage：-20°~70°
	Language menu	Chinese、English、Gemman、French、Korean、Spanish、 Italia、Russia
	Install mode	Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
	Guarantee	Whole computer free for maintain in 1 year
	Maintenance terms	Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

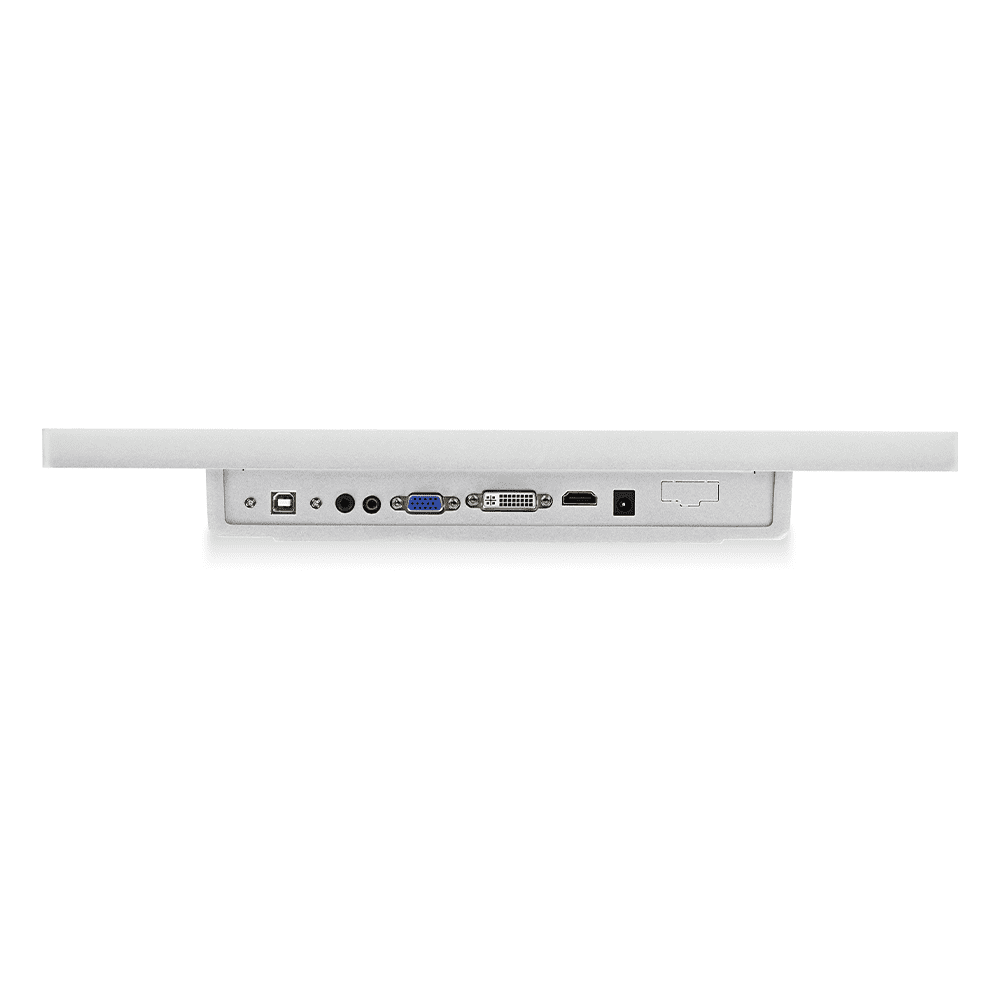

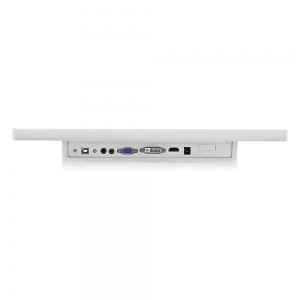

I/O interface parameter	DC port 1	1*DC12V/5525 socket
	DC port 2	1*DC9V-36V/5.08mm phonix 4 pin
	Touch function	1*USB-B external interface
	VGA	1*VGA IN
	HDMI	1*HDMI IN
	DVI	1*DVI IN
	PC AUDIO	1*PC AUDIO
	EARPHONE	1*EARPHONE
Packing list	N.W.	3.5KG
	Product size	31725262mm

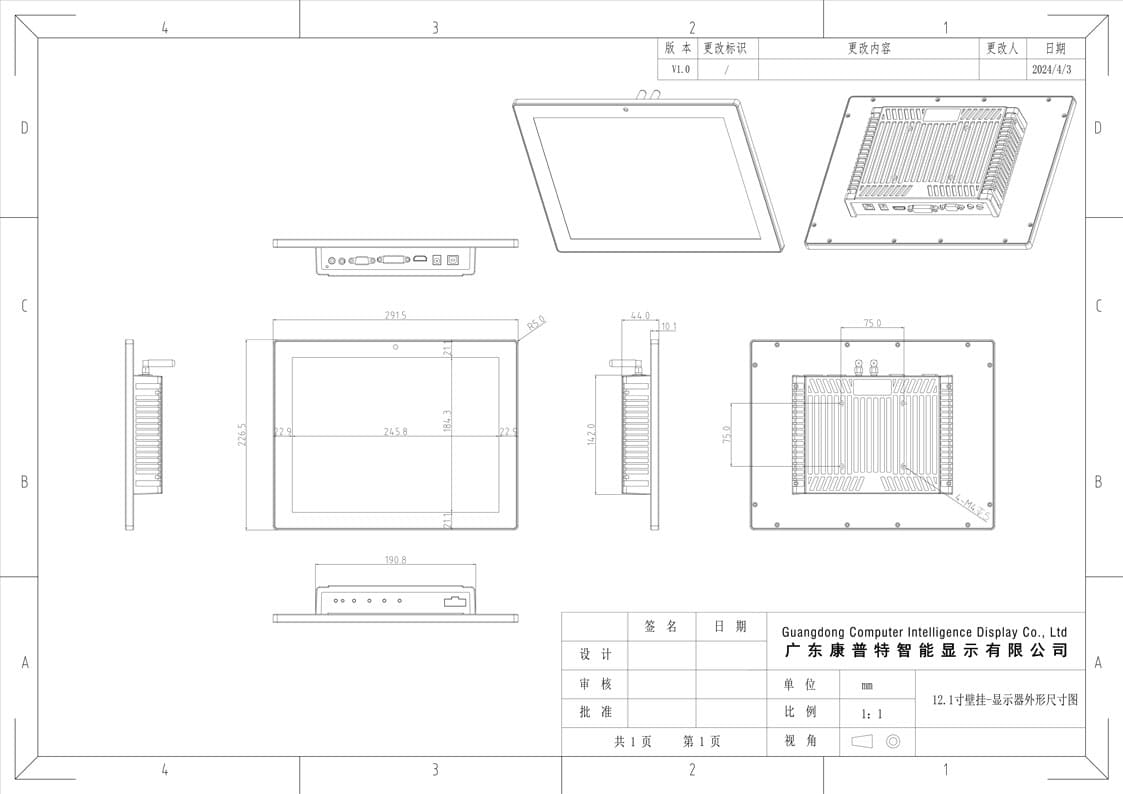

	Range for embedded trepanning	303*238mm
	Carton size	402337125mm
	Power adapter	Available for purchase
	Power line	Available for purchase
	Parts for install	Embedded snap-fit * 4，PM4x30 screw * 4

Equipment characteristics:

The RTD2552 chip is used.
The capacitive touch screen supports ten-point touch, making it more intuitive and fun to operate, extremely durable, and compatible with resistive touch.
Supports VGA, HDMI, DVI, and automatic identification signal channels.
The whole machine is shockproof and anti-vibration standard up to GB2423, easily cope with transportation/industrial/Marine operating environment.
Fire-proof, explosion-proof, moisture-proof, PCB using green substrate design and production (FR4).

Data transmitted by the RJ45 touch port is stable and firm.
Anti-static, ESD: contact 4KV, air 8KV; Anti - interference EMI/EMC standard, lightning protection, anti - magnetic design.

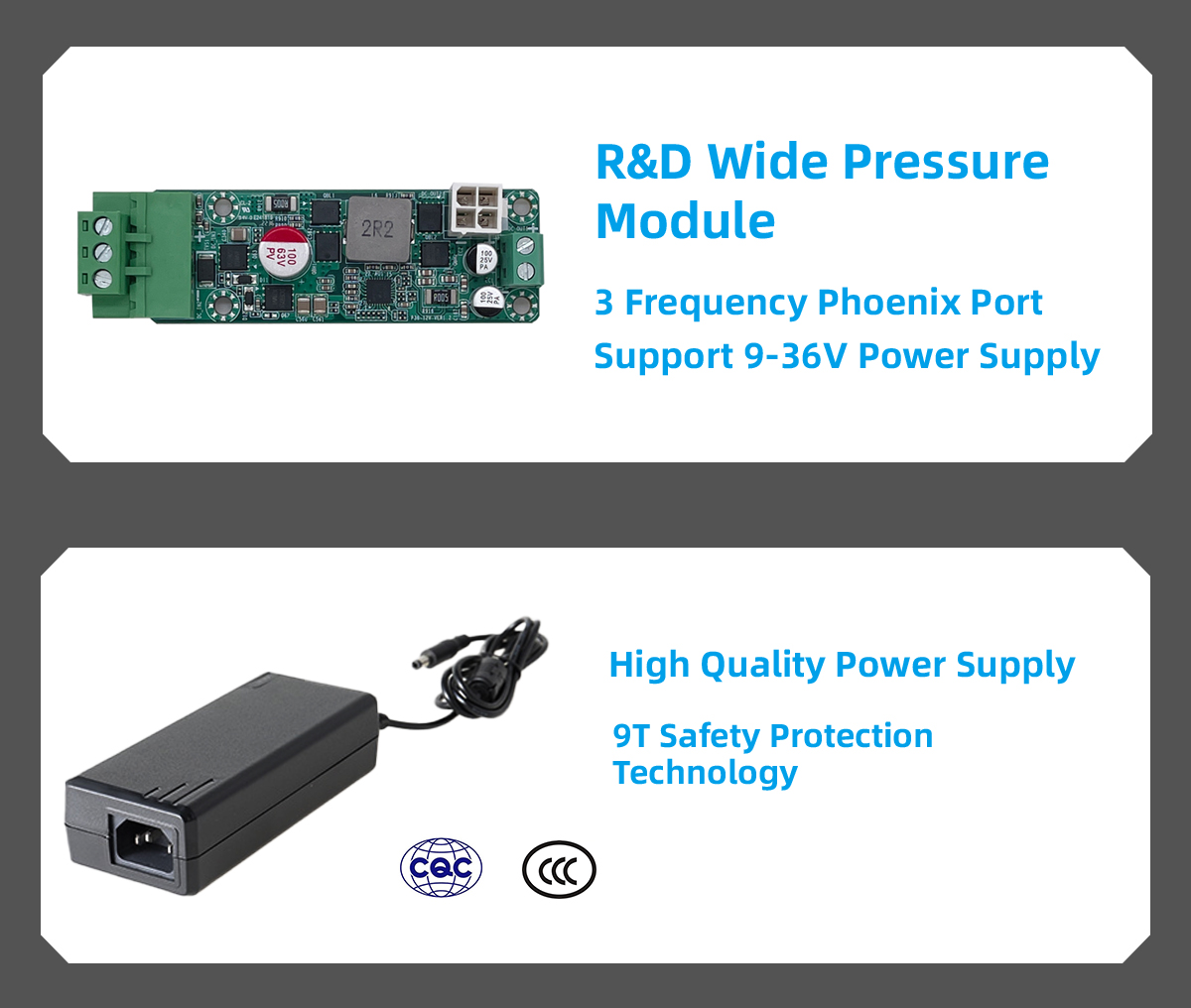

Power management chip, wide voltage: Supports 12V to 36V power input anti-fall industrial interface.

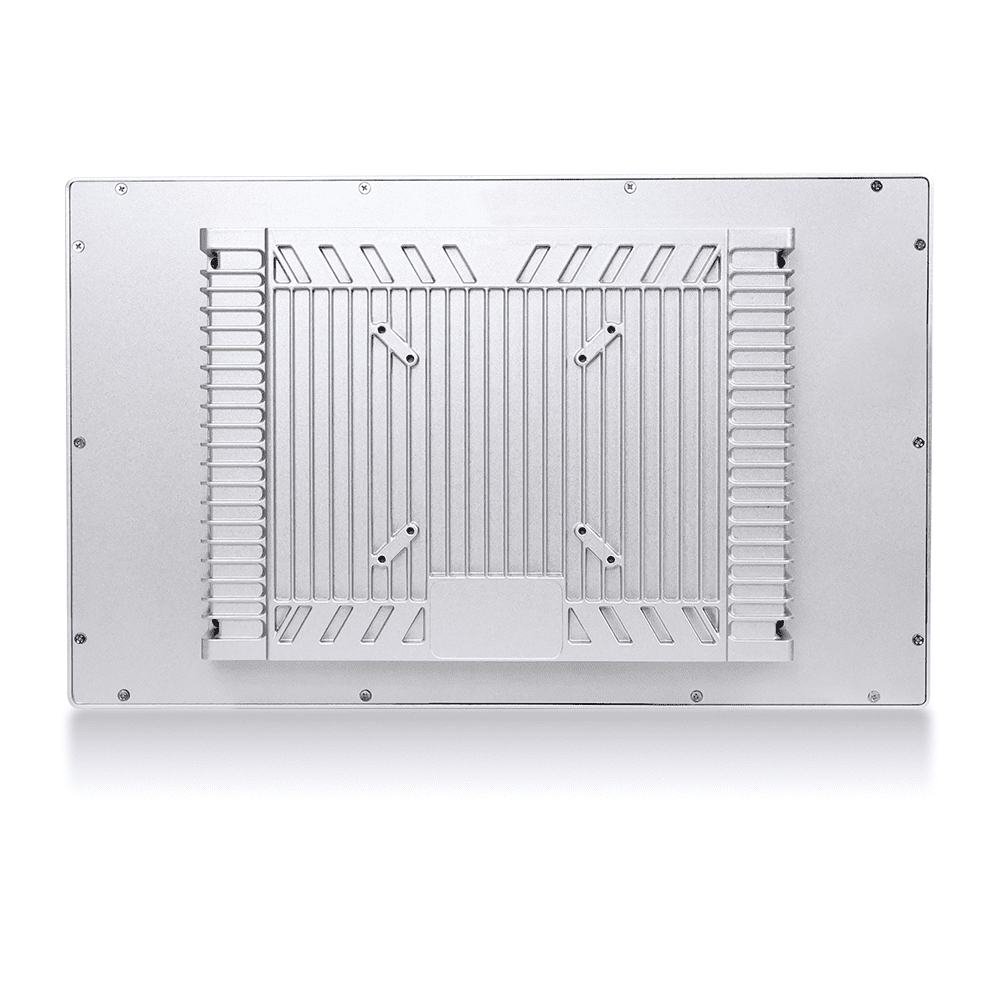

Fully enclosed and dust-proof design

The designer designed the back cover to be completely closed form, which can prevent sand and dust from entering the machine, and can operate in harsh environment. It can be used continuously in dusty production environment.
