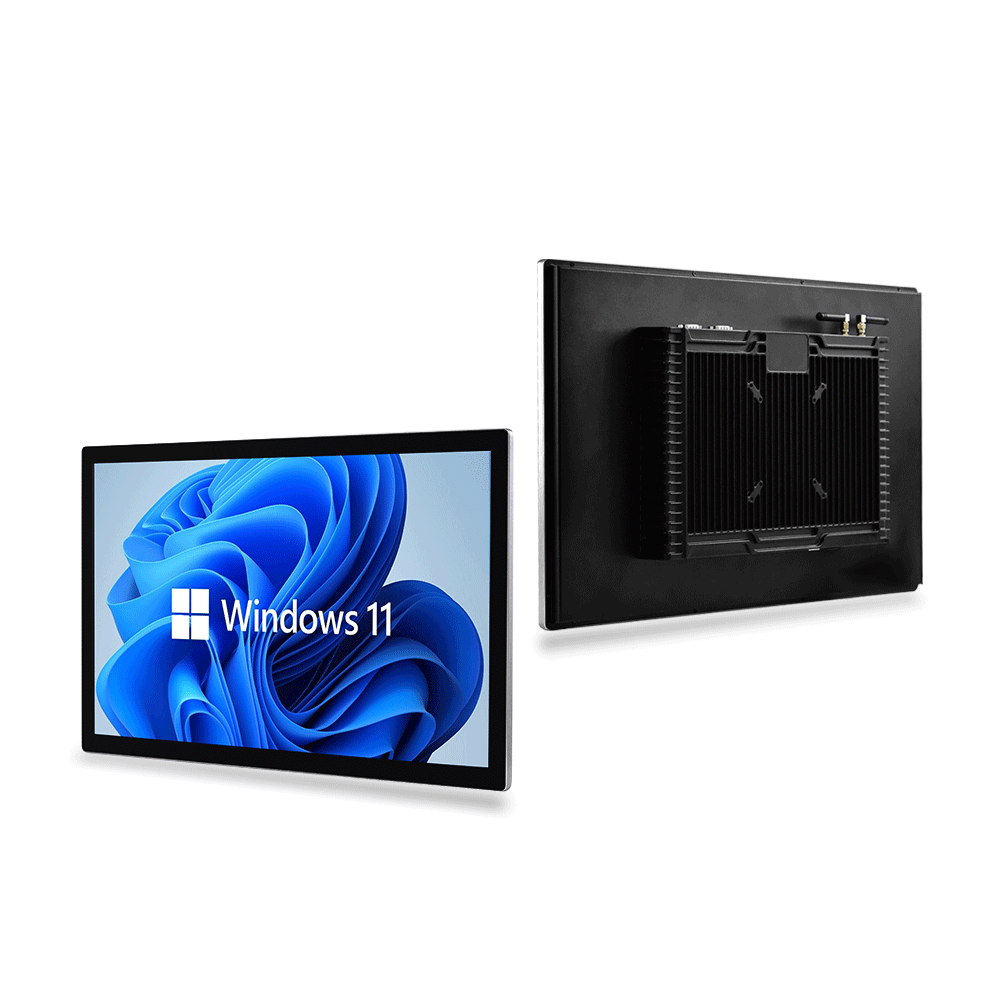

21.5 inch J4125 Wall-mounted industrial panel PC
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.
Our Wall-mounted industrial panel PC comes with several outstanding features.
First of all, it is designed with a high level of protection, able to withstand harsh industrial environments, dustproof and waterproof, with shock and vibration resistance, to ensure the stable operation of the equipment.
Secondly, the product supports a variety of interfaces, including multiple USB ports, COM ports, Ethernet ports, etc., which makes it convenient for users to connect external devices and realize diversified data transmission needs.
In addition, the panel PC is equipped with an efficient cooling system to ensure trouble-free operation of the device for a long time.
In addition, the panel PC is equipped with an efficient cooling system to ensure trouble-free operation of the device for a long time.
In terms of application scenarios: our Wall-mounted industrial panel PC is very suitable for various industrial fields. Whether it is for process control in production lines, data management in logistics and warehousing, or even intelligent building control, this product can show excellent performance in all scenarios. Its high-definition touch screen makes operation easier and faster, while its powerful computing power and stable system operation ensure high efficiency and reliability, providing users with an excellent user experience.
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage
- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
| Hardware | Mainboard | J4125 |
| CPU | Intel®Celeron J4125 2.0GHz Quad Cores | |
| GPU | Intel®UHD Graphics Core Graphics | |
| Memory | 4G（Max support 8GB） | |
| Harddisc | 64G S.S.D（Optional 128G） | |
| Operation system | Default Windows 10（support Linux） | |
| Audio | ALC888/ALC662 6-channel high-fidelity audio | |
| Network | Realtek RTL8111H Gigabit LAN | |
| Wifi | Built-in wifi antenna, support wireless connection | |

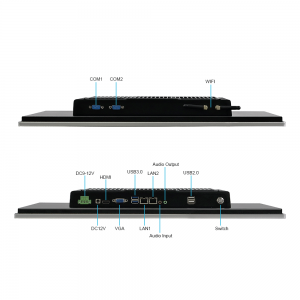

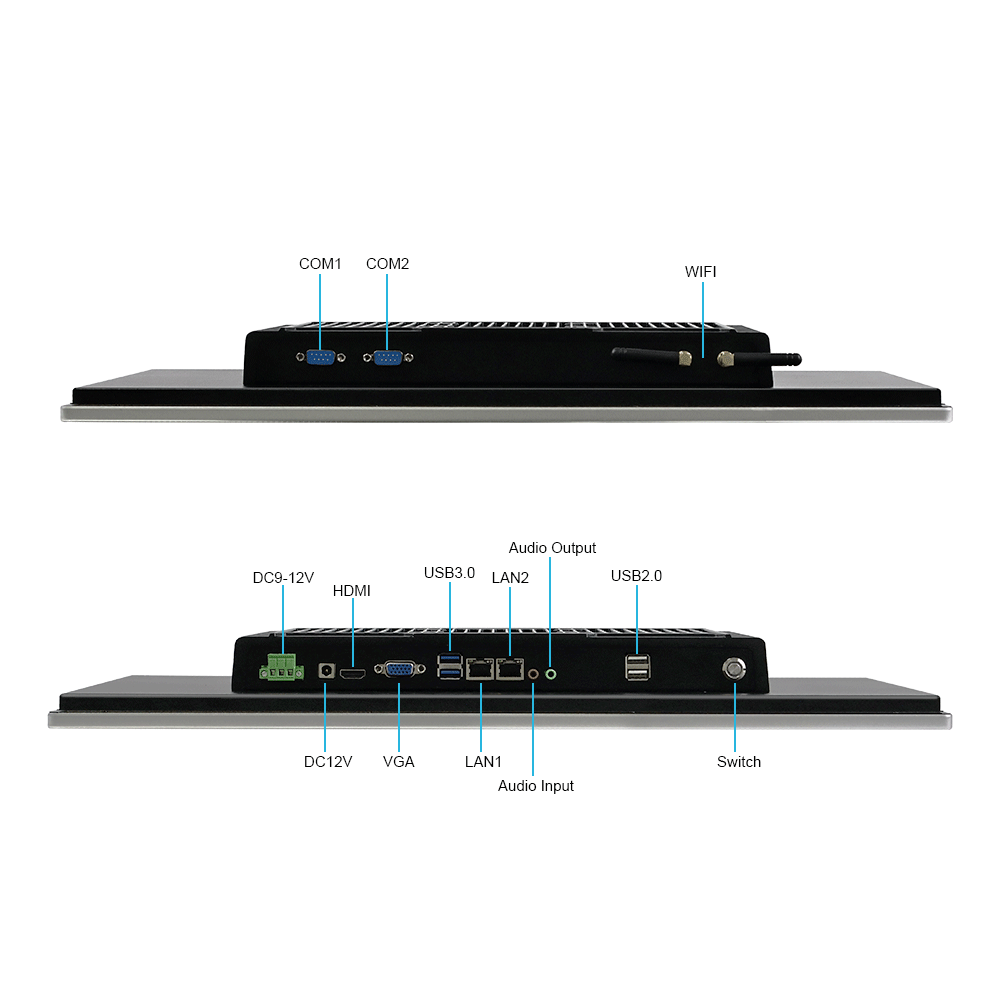

| interface | DC Power | 1*DC12V/5525 socket |
| USB3.0 | 2*USB3.0 | |
| USB2.0 | 2*USB2.0 | |
| Ethernet | 2*RJ45 Gigabit LAN | |
| Serial port | 2*COM | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| WIFI | 1*WIFI Antena | |
| Bluetooth | 1**Bluetooth Antena | |
| Audio output | 1*EAR port |
| Name | X86 Panel PC all-in-one | |
| Display | Screen size | 21.5 Inch |
| Resolution | 1920*1080 | |
| Brightness | 300 cd/m2 | |
| Color | 16.7M | |
| Contrast Rato | 1000:1 | |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) | |
| Display Area | 478.6(W)×270.1(H) mm | |
| Touch Parameter | Type | 10 points Capacitive touch |
| Lifetime | ＞50 millions times | |
| Surface Hardness | ＞7H | |
| Touch strength | 45g | |
| Glass type | chemically strengthened plexiglass | |
| Transmittance | ＞85% | |
| Hardware | Mainboard | J4125 |
| CPU | Intel®Celeron J4125 2.0GHz Quad Cores | |
| GPU | Intel®UHD Graphics Core Graphics | |
| Memory | 4G（Max support 8GB） | |
| Harddisc | 64G S.S.D（Optional 128G） | |
| Operation system | Default Windows 10（support Linux） | |
| Audio | ALC888/ALC662 6-channel high-fidelity audio | |
| Network | Realtek RTL8111H Gigabit LAN | |
| Wifi | Built-in wifi antenna, support wireless connection | |
| interface | DC Power | 1*DC12V/5525 socket |
| USB3.0 | 2*USB3.0 | |
| USB2.0 | 2*USB2.0 | |
| Ethernet | 2*RJ45 Gigabit LAN | |
| Serial port | 2*COM | |
| VGA | 1*VGA IN | |
| HDMI | 1*HDMI IN | |
| WIFI | 1*WIFI Antena | |
| Bluetooth | 1**Bluetooth Antena | |
| Audio output | 1*EAR port | |
| Parameter | Material | Aluminum alloy front Panel |
| Color | Black | |
| AC adapter | AC 100-240V 50/60Hz CCC certified、CE certified | |
| Power dissipation | ≤30W | |
| Power output | DC12V / 5A | |
| Other Parameter | Backlight lifetime | 50000h |
| Temperature | Working：-10°~60°；Storage-20°~70° | |
| Installing mode | Wall mounted/Embedded /Desktop louver /folding bracket/cantilever | |
| Warranty | 1 YEAR | |
