11.6 Inch Industrial Touch Screen Computer Display Monitor Pc

Short Description:

  • Screen Size:11.6 inch
  • Screen Resolution:1920*1080
  • Luminous:300 cd/m2
  • Color Quantitis:16.7M
  • Contrast :1000:1
  • Visual Range:89/89/89/89(Typ.)(CR≥10)
  • Display Size:257(W)×144.8(H) mm

Product Detail

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Parameter Information:

COMPT Company has been dedicated to the research, development, production and sales of industrial computer monitors since its establishment in 2014. Our industrial computer monitors have a number of product certifications, including CE, UL, RoHS, FCC, ISO9001, etc., to ensure that product quality and performance meet international standards.

Our industrial computer monitors feature 7*24 continuous operation, IP65 dustproof and waterproof, adaptable to harsh environments, aluminum alloy material, fast heat dissipation, etc. We can customize different sizes according to customers' needs, such as 10.1 inches, 10.4 inches, 11.6 inches, 12.1 inches, 13.3 inches, 15.6 inches, 17.3 inches, 18.5 inches, 19 inches and 21.5 inches.

Our industrial computer monitors are widely used in industrial automation, smart manufacturing, IoT and other fields, providing customers with reliable monitoring solutions.

Our industrial computer monitors are manufactured with advanced technology and materials to ensure stable and reliable performance. Aluminum alloy material and fast heat dissipation design enable our products to operate stably for long periods of time in harsh industrial environments.IP65 rated dust and waterproof design ensures the reliability and durability of the device in dust and moisture environments.

In addition, our industrial computer monitors support customization, and can be customized with different sizes and features to meet the needs of different application scenarios.

Parameter:

Name industrial computer monitor
Display Screen Size 11.6 inch
Screen Resolution 1920*1080
Luminous 300 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 89/89/89/89(Typ.)(CR≥10)
Display Size 257(W)×144.8(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type More than 50 miliion times
Luminousness >85%
Parameter Power suplier mode 12V/5A external power adapter / industral interface
Power specs 100-240V,50-60HZ
Imput voltage 9-36V/12V
Anti-static Contact discharge 4KV-air discharge 8KV(customization available≥16KV)
Rate of work ≤8W
Vibration proof GB242 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Protection Front panel IP65 dustproof waterproof
Color of shell Black
Environment temperature <80%,Condesation forbidden
Working temperature Working:-10°~60°;Storage:-20°~70°
Language menu Chinese、English、Gemman、French、Korean、Spanish、
Italia、Russia
Install mode Embedded snap-fit/wall hanging/desktop louver bracket/foldable base/cantilever type
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain

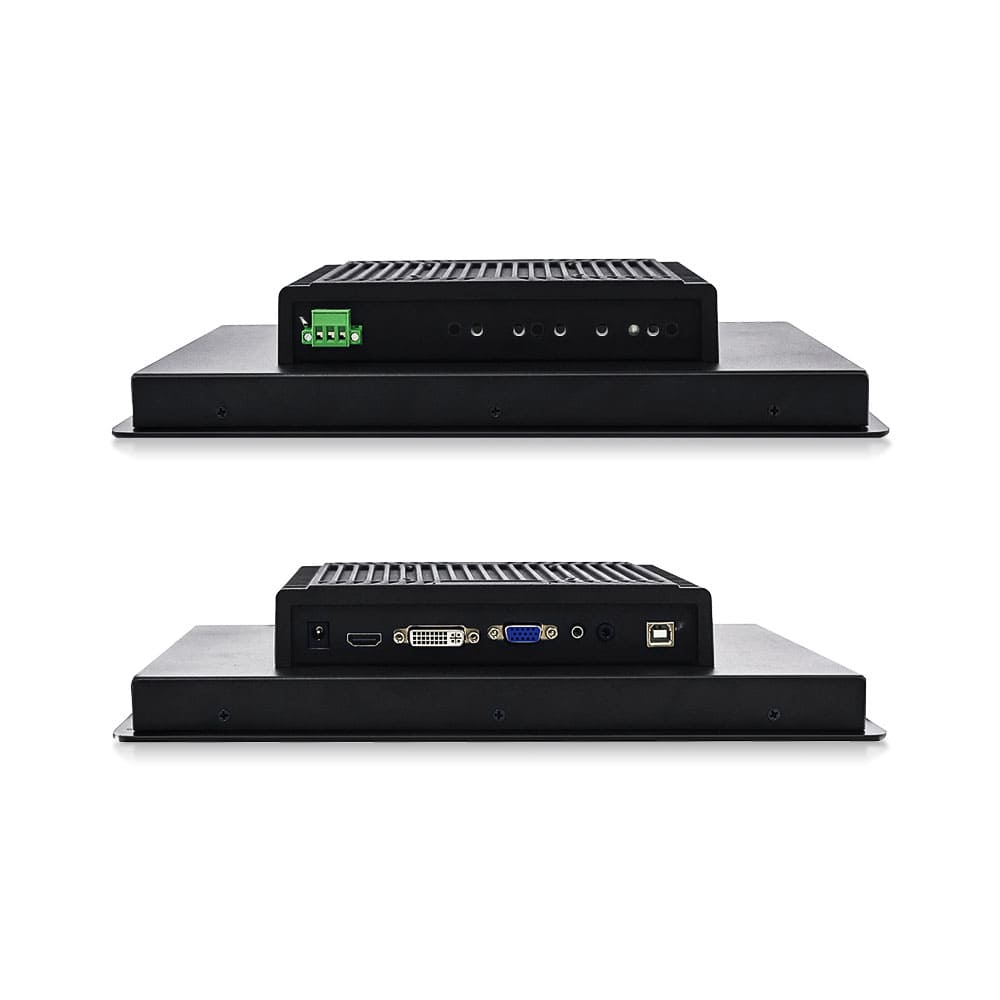

I/O interface parameter DC port 1 1*DC12V/5525 socket
DC port 2 1*DC9V-36V/5.08mm phoneix 3 pin
Touch function 1*USB-B external interface
VGA 1*VGA IN
HDMI 1*HDMI IN
DVI 1*DVI IN
PC AUDIO 1*PC AUDIO
EARPHONE 1*earphone
Packing list N.W. 2.5KG
Product size 326*212*57mm
Range for embedded trepanning 313.5*200mm
Carton size 411*297*125mm
Power adapter Optional
Power line Optional
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

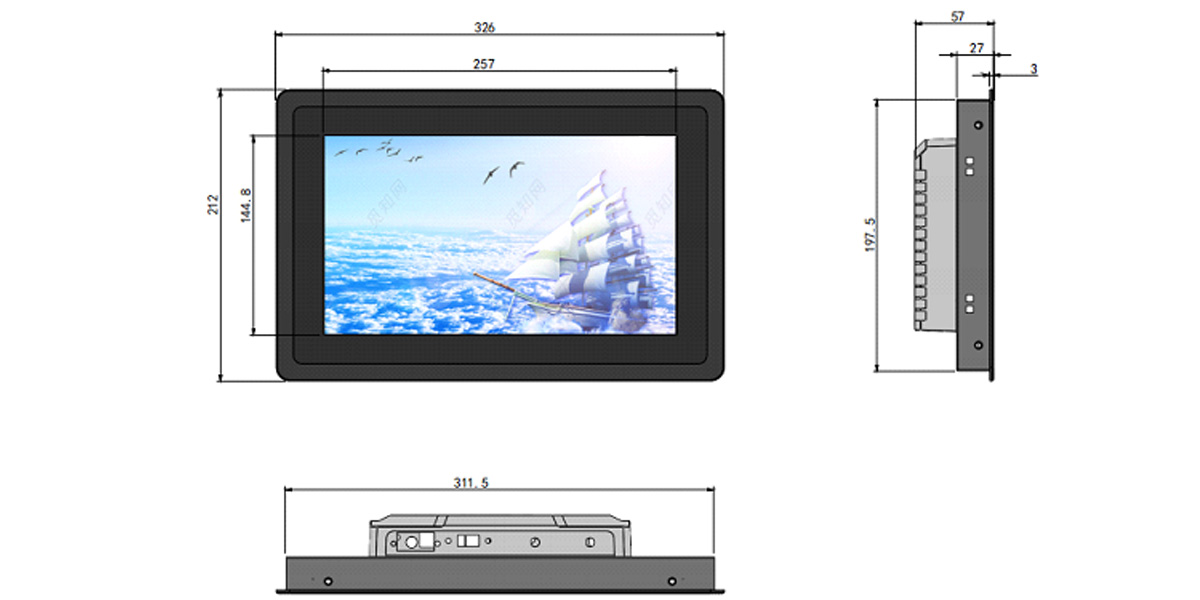

Engineering Dimention Drawing:

https://www.gdcompt.com/11-6-inch-industrial-touch-screen-computer-display-monitor-pc-product/

Product Solutions:

COMPT's industrial computer monitors are widely used in industrial automation, intelligent manufacturing, Internet of Things and other fields. Our products are not only favored in the domestic market, but also exported to overseas and well received by customers. We always adhere to the customer demand-oriented, continuous innovation and optimization of product design, is committed to providing customers with high-quality, reliable industrial monitoring solutions.

Manufacturing Shop:

As a high-tech enterprise, COMPT will continue to be committed to research and development and innovation in the field of industrial computer monitors, and constantly improve the quality of products and technology to provide customers with better products and services. We will adhere to the "quality first, customer first" purpose, and customers work together, common development, create a better future.
