10.4″ Fanless Embedded Industrial Panel Touch Screen Pc

Short Description:

  • Name: Industrial Panel Touch Screen Pc
  • Size: 10.4 inch
  • CPU: J4125
  • Screen Resolution: 1024*768
  • Memory: 4G
  • Harddisk: 64G

Product Detail

Product Tags

Products Video

This Industrial Panel Touch Screen Pc has excellent anti-interference capability and is able to operate stably in industrial environments without being affected by external interference. Its touch screen adopts advanced technology with high sensitivity and accuracy, which can meet the various needs of touch operation in the industrial field. At the same time, it is also waterproof and dustproof, which can operate stably in harsh industrial environments and ensure the reliable use of equipment for a long time.

Parameter Information:

COMPT's Industrial Panel Touch Screen PC is a high-quality industrial computer, independently developed and manufactured to meet various installation requirements, such as supporting embedded, wall-mounted, desktop, cantilevered and so on. It supports various interfaces and extensions: USB, DC, RJ45, audio interface, HDMI, CAN, RS485, GPIO, etc., which can be connected to a variety of peripheral devices.

This industrial panel PC adopts advanced technology and design with stable and reliable performance for various application scenarios in industrial environments. It adopts a fanless design that enables stable operation in harsh industrial environments while maintaining low power consumption and low noise. Its ruggedized enclosure is designed to withstand various challenges in the industrial field and ensure stable operation of the device for a long period of time.

Parameter Parameter:

Display Screen Size 10.4 inch Industrial Panel Touch Screen Pc
Screen Resolution 1024*768
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Display Size 212.3 (w) × 159.5 (h) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maxmum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect
Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput & output 1*earphone & MIC two-in-one

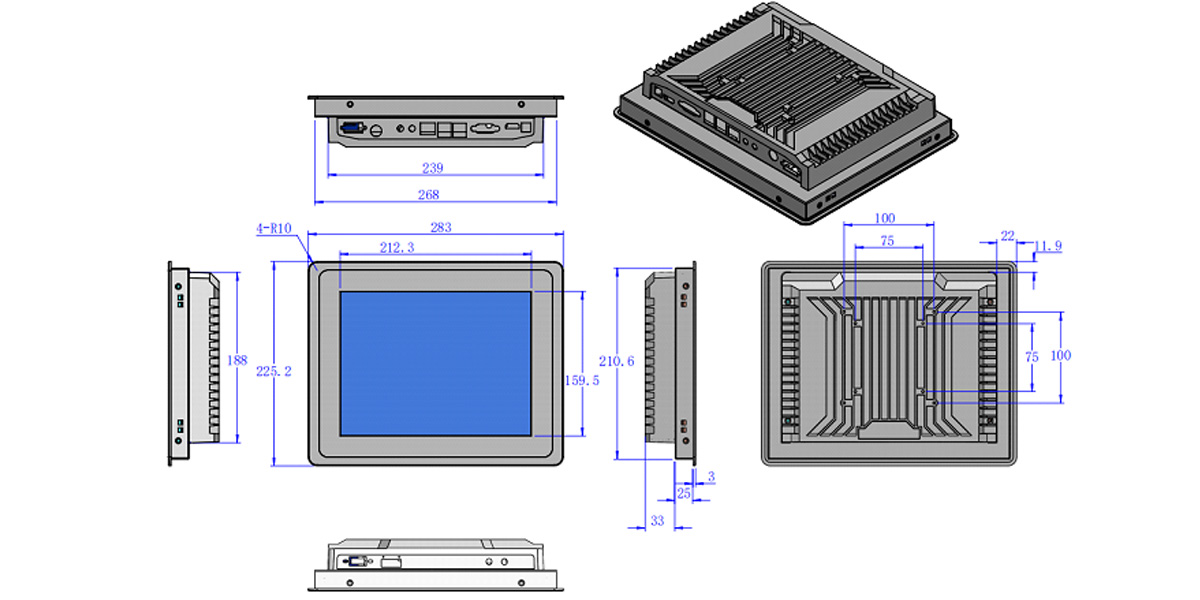

Engineering Dimention Drawing:

https://www.gdcompt.com/10-4-inch-j4125-industrial-all-in-one-touch-screen-panel-pc-product/

Product Solutions:

The Industrial Panel Touch Screen Pc has rich expandability, which can meet the needs of the industrial field for a variety of peripheral equipment connection. It supports a variety of interfaces and extensions, and can be connected to a variety of sensors, actuators, controllers and other peripheral devices to achieve data exchange and communication between devices. At the same time, it also supports a variety of installation methods, can be flexibly adapted to different installation environments and needs.

monitor solution
SOLUTIONS
SOLUTIONS
https://www.gdcompt.com/solution/
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

In conclusion, COMPT Industrial Panel Touch Screen PC is a high-performance, stable and reliable industrial computer for various application scenarios in the industrial field. It has advanced technology and design, which can operate stably in harsh industrial environments and ensure the reliable use of equipment for a long time. Whether in the field of industrial automation, intelligent manufacturing, Internet of Things, etc., COMPT Industrial Panel Touch Screen PC can play an excellent performance and provide users with high-quality experience.
