12.1 inch J4125 Industrial all-in-one pc with screen resolution 1280*800

Short Description:

An industrial all-in-one pc, also known as a rugged all-in-one, is an advanced computing tool used in complex processes and operations in industrial and manufacturing units. The device is an all-in-one computing solution with a rugged industrial-quality design, high-performance processor, and large storage capacity, making it suitable for use in harsh environments.

One of the biggest advantages of using an all-in-one computer is its durability and reliability. The device can withstand harsh industrial environments such as heat, humidity, dust and extreme vibration. This makes it the perfect computing solution for industries such as oil and gas, petrochemical, logistics and transportation.


  • Model: CPT-121PXBC2-J4125
  • Screen Size: 12.1 inch
  • Screen Resolution: 1980*800
  • Luminous: 300 cd/m2
  • Product Detail

    Product Tags

     Industrial all-in-one pc Video:

    Industrial all-in-one pc

    This video shows the product in 360 degrees.
    Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
    Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

    Features of  Industrial all-in-one pc:

    Compt company Industrial all-in-one pc has many outstanding features. Another advantage of using an all-in-one machine is its adaptability to various industries and applications.
    The device can be customized to meet the specific needs of various industries requiring high-performance computing solutions, such as industrial automation and control systems, video surveillance, and data acquisition and analysis.

    https://www.gdcompt.com/industrial-all-in-one-pc-with-screen-resolution-1280800-product/
    industrial panel pc touch screen
    industrial panel pc touch screen

    Hardware Configuration information:

    Display Screen Size 12.1 inch
    Screen Resolution 1280*800
    Luminous 300 cd/m2
    Color Quantitis 16.7M
    Contrast 1000:1
    Visual Range 89/89/89/89 (Typ.)(CR≥10)
    Display Size 261.12(W)×163.2(H) mm
    Touch parameter Reaction Type Electric capacity reaction
    Lifetime More than 50 million times
    Surface Hardness >7H
    Effective Touch Strength 45g
    Glass Type Chemical reinforced perspex
    Luminousness >85%

    Hardware MAINBOARD MODEL J4125
    CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
    GPU Integrated Intel®UHD Graphics  600 core card
    Memory 4G(maximum 16GB)
    Harddisk 64G solid state disk(128G replacement available)
    Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
    Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
    Network Integrated giga network card
    Wifi Internal wifi antenna,supporting wireless connect

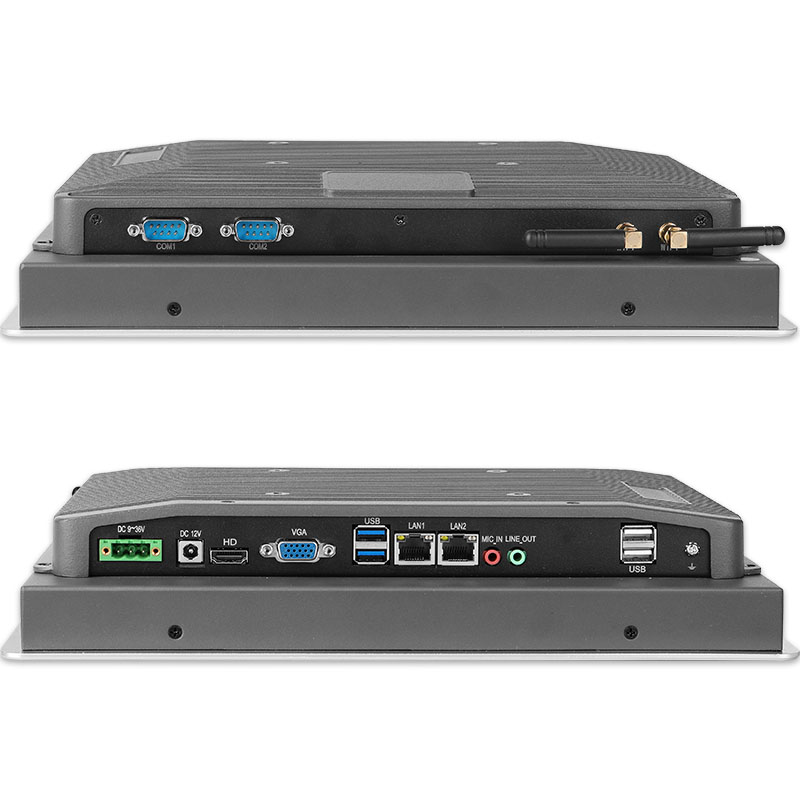

    Interfaces DC Port 1 1*DC12V/5525 socket
    DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
    USB 2*USB3.0,1*USB 2.0
    Serial-Interface RS232 0*COM(upgrade able)
    Ethernet 2*RJ45 giga ethernet
    VGA 1*VGA
    HDMI 1*HDMI OUT
    WIFI 1*WIFI antenna
    Bluetooth 1*Bluetooch antenna
    Audio imput & output 1*earphone & MIC two-in-one
    Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
    Color Black
    Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
    Power dissipation ≈20W
    Power output DC12V / 5A
    Other parameter Backlight lifetime 50000h
    Temperature Working:-10°~60°;storage-20°~70°
    Install Embedded snap-fit
    Guarantee Whole computer free for maintain in 1 year
    Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
    Packing list N.W. 3.5KG
    Product size(not in cluding brackt) 322*224.5*59mm
    Range for embedded trepanning 308*210.5mm
    Carton size 407*310*125mm
    Power adapter Available for purchase
    Power line Available for purchase
    Parts for install Embedded snap-fit * 4,PM4x30 screw * 4



    Industrial all-in-one pc solution:

    The high-performance processor and large storage capacity of the industrial all-in-one PC also make it suitable for demanding processes such as digital signage and interactive kiosks in the advertising and retail industries. Additionally, industrial kiosks are ideal solutions for inventory management, transportation and logistics, and warehouse management systems in manufacturing and distribution centers.

    Industrial computer in AGV Forklift solutions
    Industrial computers in Intelligent Transportation solutions
    Industrial Android All-in-One Solution in Smart Home Robotics
    Industrial android panel cp in cnc machine Solutionr
    industrial computer Heavy Industry Equipment Solution
    Industrial computers in intelligent security solutions
    https://www.gdcompt.com/solution/smart-agriculture-solution/
    Hospital self-service inquiry and payment equipment

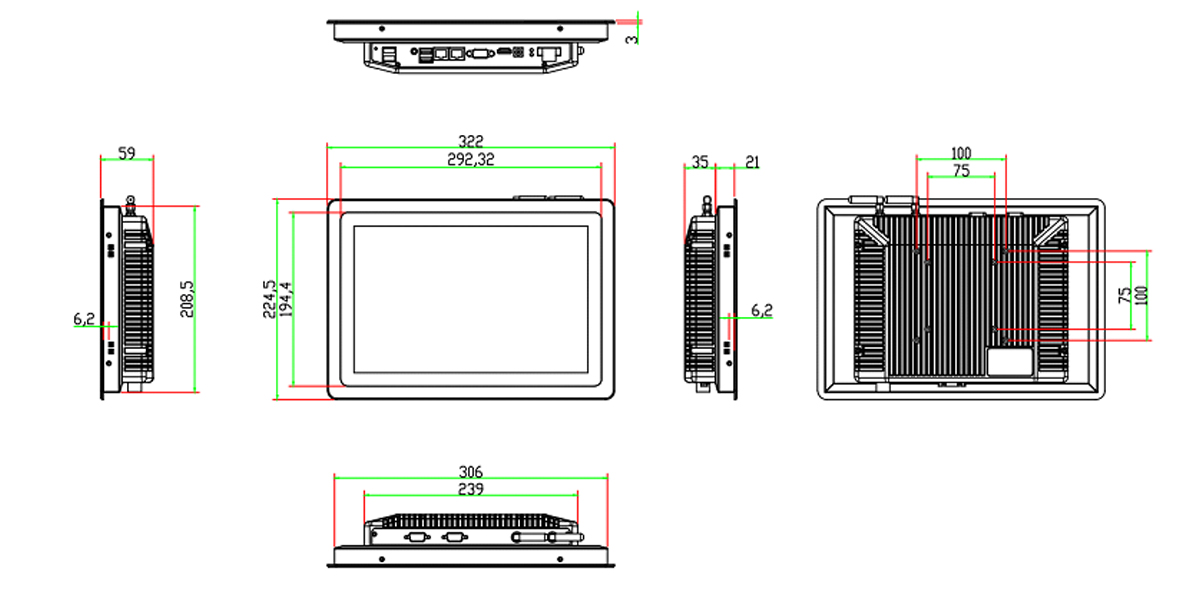

    Industrial all-in-one pc Engineering dimention drawing:

    industrial all in one pc4

    In conclusion, an all-in-one computer is a highly reliable and durable computing solution designed to meet the needs of various industries. With its rugged design, high-performance processor and large storage capacity, it can handle complex processes and operations, making it an ideal computing tool for manufacturing cells and harsh industrial environments such as the oil and gas industry.
