Fanless 7 Inch Industrial Touch Screen Panel PC All-in-One Windows 10
This video shows the product in 360 degrees.
Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.
Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

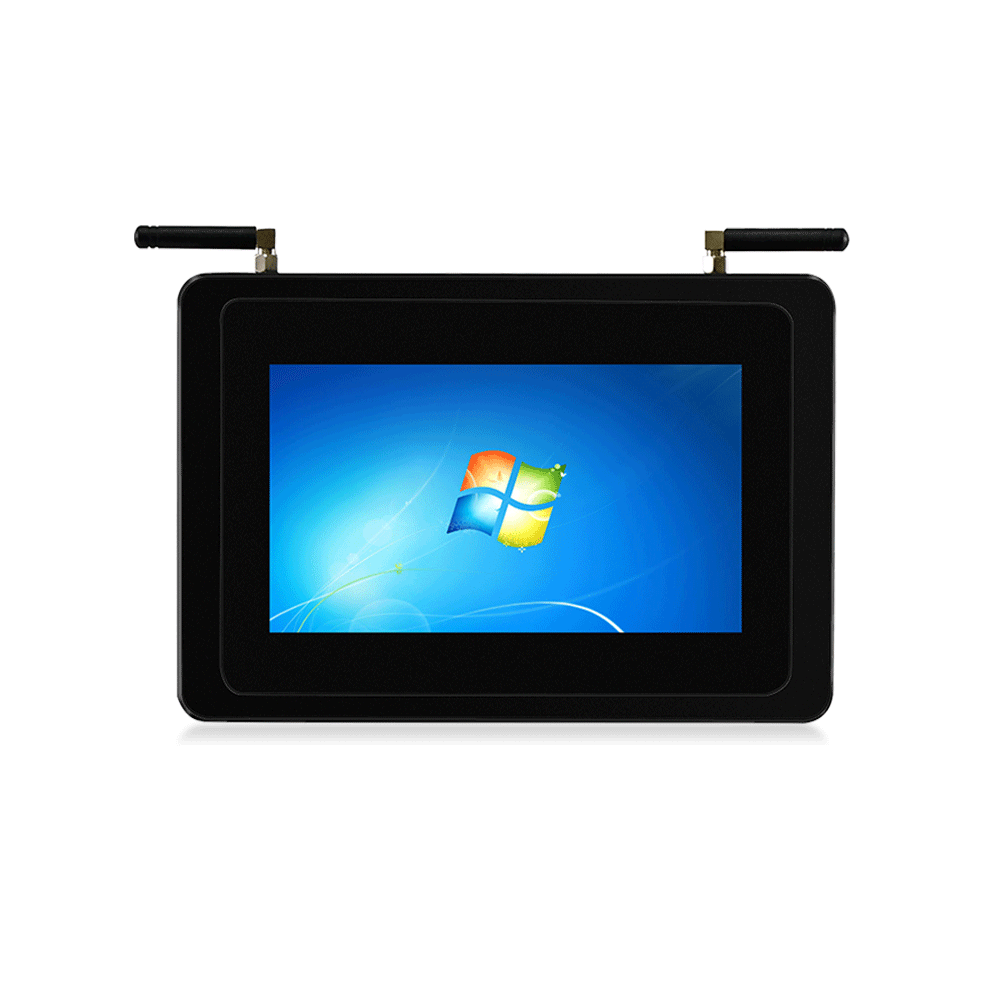

COMPT's customised 7" Industrial PC All-in-One is a professional embedded device designed for the industrial field, which combines high-performance processing power, stable and reliable industrial-grade design and a wide range of applications. The product features a black exterior with a capacitive touch screen with a resolution of 1024*600, is equipped with a YS-J1900 processor, offers 4G RAM and 64G storage, and supports IP65 dust and water resistance, among other features, making it suitable for use in a variety of harsh industrial environments.
Characterised by its embedded design, this industrial PC all-in-one is not only compact and aesthetically pleasing, but also features strong anti-interference capability and high stability, making it suitable for industrial automation control, equipment monitoring, industrial data acquisition, IoT devices, smart home control and other fields.
At the same time, its black appearance and IP65 dustproof and waterproof screen design, making it more suitable for outdoor, vehicle, plant and other harsh environments such as the use of the scene. Not only that, the industrial computer all-in-one is equipped with capacitive touch screen, users can easily operate, while the resolution of 1024 * 600, the display screen is clear and detailed, to meet the industrial field for high-definition screen requirements. Equipped with YS-J1900 processor, 4G RAM and 64G storage space, the performance is stable and efficient, ensuring fast response and smooth operation of the system.
- Industrial aesthetic design
- Streamlined appearance design
- Independent research and development independent mold opening
- Stable performance and low power consumption
- Front panel waterproof design
- Flat panel up to IP65 waterproof standard
- GB2423 anti-vibration standard
- Added shock-proof EVA material
- Recessed cabinet installation
- 3mm tightly fitted to the embedded cabinet
- Fully enclosed dust-proof design
- Greatly improve the service life of the fuselage
- Aluminum alloy body
- Aluminum alloy die-casting integrated forming
- EMC/EMI Anti-interference standard Anti-electromagnetic interference
In terms of network, it provides single network or wireless broadband option, which is convenient to meet the network connection needs of different users. This 7-inch industrial PC all-in-one not only plays an important role in industrial sites, but can also be applied to smart home control, medical equipment, vehicle navigation and other fields, providing a comprehensive solution for a variety of industrial and commercial scenarios. Its highly customisable features can meet the needs of various users for different functions, providing customers with more flexible and reliable industrial equipment solutions.
| Name | X86 All-in-One Computer | |
| Display | Screen Size | 7 inch |
| Screen Resolution | 1024*600 | |
| Luminous | 350 cd/m2 | |
| Color Quantitis | 16.7M | |
| Contrast | 1000:1 | |
| Visual Range | 85/85/85/85(Typ.)(CR≥10) | |
| Touch parameter | Reaction Type | Capacitive touch screen |
| Lifetime | More than 50 million times | |
| Surface Hardness | ＞7H | |
| Effective Touch Strength | 45g | |
| Glass Type | LCD touch screen | |
| Luminousness | ＞85% | |
| Hardware | MAINBOARD MODEL | J1900 |
| CPU | Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz |
|
| GPU | Intel® HD Graphics for Intel Atom® Processor Z3700 | |
| Memory | 4G（maximum 16GB） | |
| Harddisk | 64G solid state disk（128G optional ） | |
| Operate system | Default Windows 10（Windows 11/Linux/Ubuntu optional） | |
| Network | Integrated giga network | |
| Wifi | Internal wifi antenna,supporting wireless connect | |
| Interfaces | DC Port 1 | 1*DC12V/5525 socket |
| DC Port 2 | 1*DC9V-36V/5.08mm phoenix 3 pin （optional) | |
| USB | 2*USB3.0，1*USB 2.0 | |
| Serial-Interface RS232 | 0*COM（support upgrade） | |
| Ethernet | 1*RJ45 giga ethernet | |
| VGA | 1*VGA | |
| HDMI | 1*HDMI OUT | |
| WIFI | 1*WIFI antenna | |
| Bluetooth | 1*Bluetooth antenna | |
| Audio imput & output | 1*earphone & MIC two-in-one | |
| Parameter | Material | Aluminum alloy front Panel with IP65 waterproof and dustproof |
| Color | Black | |
| Power adapter | AC 100-240V 50/60Hz CCC certificated、CE certificated | |
| Power dissipation | ≈20W | |
| Power output | DC12V / 5A | |
| Other parameter | Backlight lifetime | 50000h |
| Temperature range | Working：-10°~60°；storage-20°~70° | |
| Install mode | Embedded snap-fit | |
| Guarantee | Whole computer free for maintain in 1 year | |
| Warrantee | 24 Month | |
| Packing list | N.W. | 2KG |

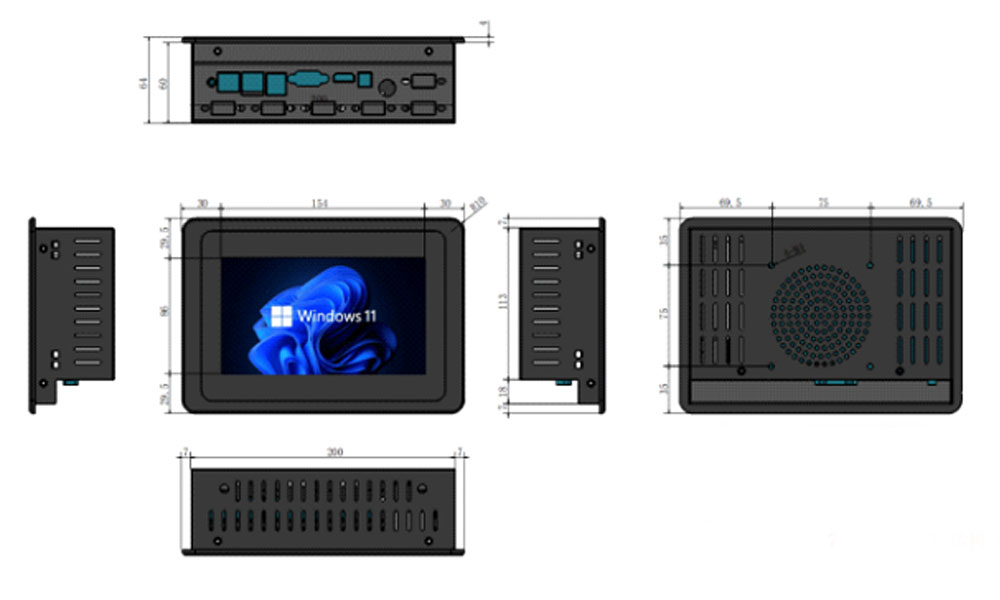

| Product size | 277*195.6*54mm | |
| Embedded hole | 263*182mm | |
| Carton size | 362*280.5*125mm | |
| Power adapter | Include | |
| Power line | include | |
| Parts for install | Embedded snap-fit * 4，PM4x30 screw * 4 |
