10.4 Inch J4125 Industrial All In One Touch Screen Panel Pc

Short Description:

Name: industrial pc with touch screen

Model:CPT-104P-XBC2A01

Screen Size:10.4 inch

Screen Resolution:1024*768

Luminous:350 cd/m2

MAINBOARD MODEL:J4125

CPU:Integrated Intel®Celeron J4125 2.0GHz quad-core

Visual Range:85/85/85/85(Typ.)(CR≥10)


Product Detail

10.4"

Product Tags

Products Video

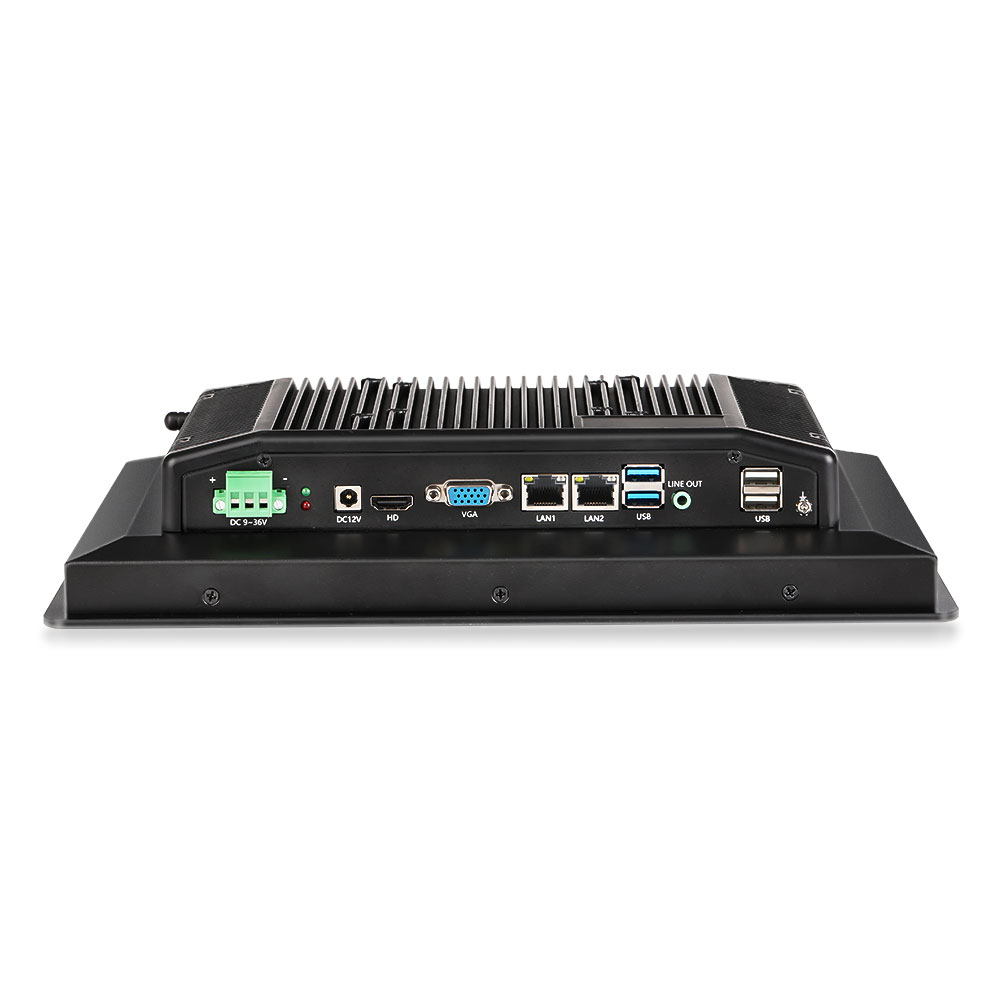

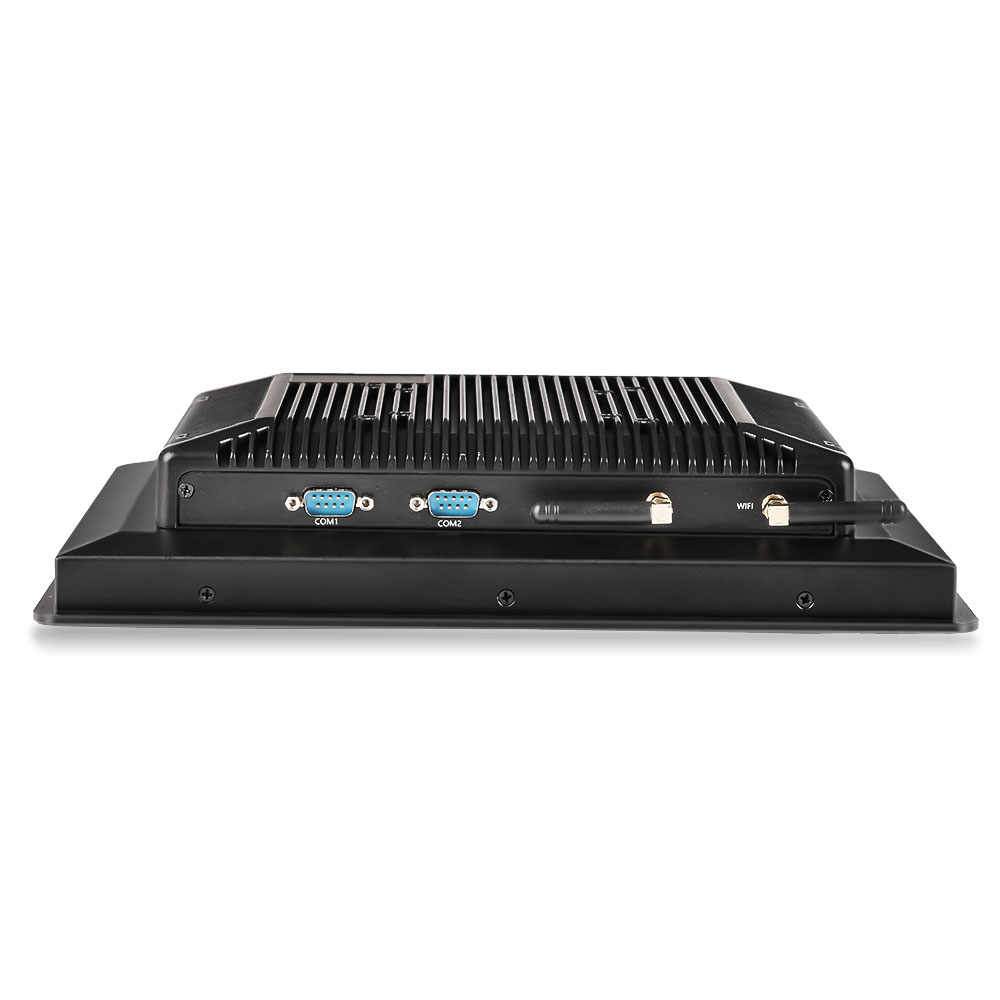

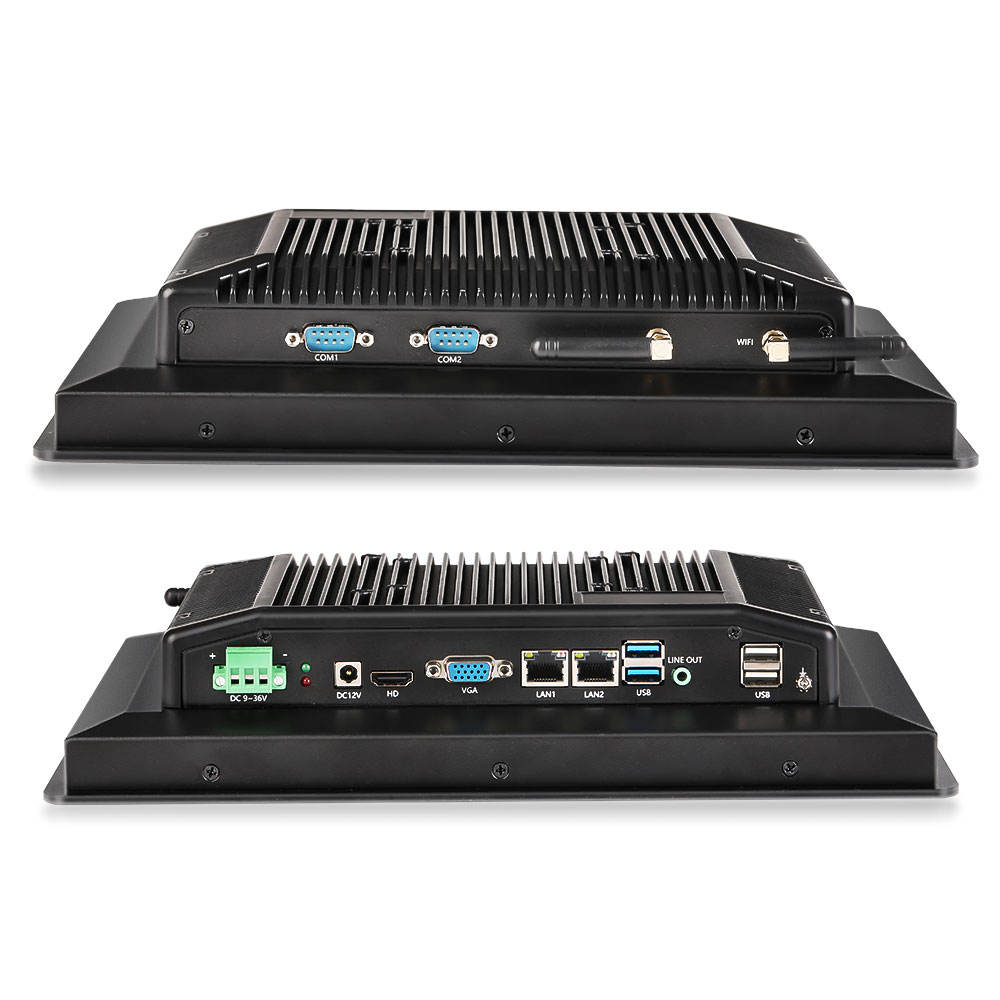

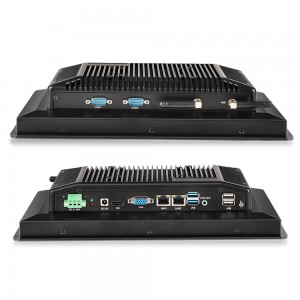

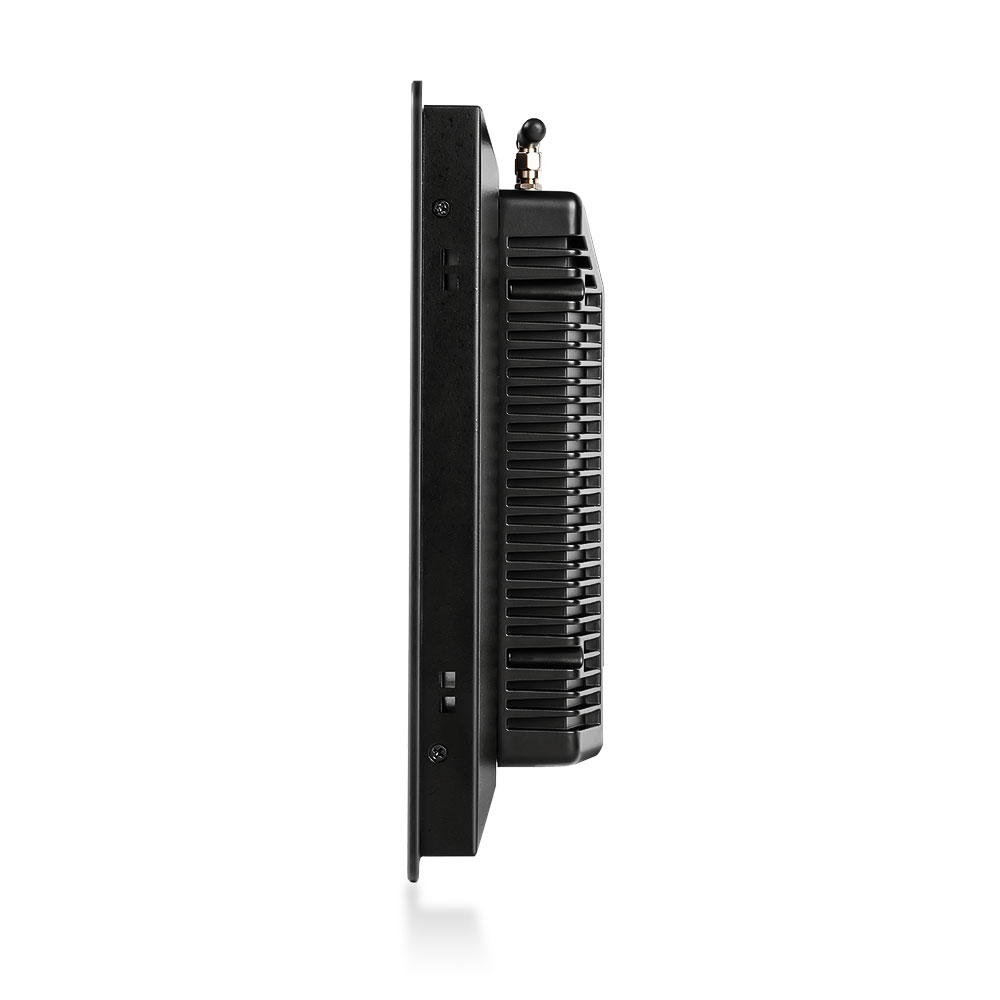

This video shows the industrial pc with touch screen in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Industrial PC With Touch Screen Information:

COMPT's Industrial All In One Touch Screen Panel Pc.This is a powerful industrial all in one touch screen panel pc with a high performance J4125 processor that provides you with superior computing power and stability.
This 10.4 Inch touchscreen panel PC features a compact design and rugged enclosure for a variety of industrial environments. Not only that, but it is also IP65 rated for reliable protection against dust, splashes and vibration.
COMPT's Industrial All In One Touch Screen Panel Pc is also equipped with a full HD display that provides clear, bright images and detailed colours. Equipped with touch screen technology, you can easily operate it with the touch of a finger or stylus, eliminating the need for an external keyboard and mouse.

In addition, our product offers a wide range of connectivity options, including multiple USB ports, serial ports, Ethernet ports and HDMI ports for a variety of external devices.
It also supports wireless network connectivity, enabling you to conveniently communicate and transfer data wirelessly. Whether you are in the field of industrial automation, logistics and warehouse management, HMI control, etc., our Industrial All In One Touch Screen Panel Pc will be your best partner. It is reliable, durable, efficient and easy to use, ensuring that your work runs smoothly.

Parameter Parameter:

Display Screen Size 10.4 inch industrial pc with touch screen
Screen Resolution 1024*768
Luminous 350 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85(Typ.)(CR≥10)
Display Size 212.3 (w) × 159.5 (h) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 miliion times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maxmum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect
Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1* Bluetooch antenna
Audio imput & output 1*earphone & MIC two-in-one
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated, CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return. Mail for maintain
Packing list N.W. 2.5KG
Product size(not in cluding brackt) 283*225.2*61mm
Range for embedded trepanning 270*212.5mm
Carton size 371*310*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

Engineering Dimention Drawing:

https://www.gdcompt.com/10-4-inch-j4125-industrial-all-in-one-touch-screen-panel-pc-product/

Industrial PC With Touch Screen Solutions:

1. Industrial control: This industrial pc with touch screen is suitable for various control systems such as automatic production line control and robot control. Due to its high reliability and durability, it can perform excellent stability in high-risk and harsh environments.

2. Intelligent Internet of Things: As a high-performance industrial computer, it can connect to various devices and embedded systems in the network, improve data processing and management capabilities, and facilitate rapid and efficient work in the field of intelligent Internet of Things .

3. Office PC: This industrial PC has a high-resolution screen and excellent performance, and can be used to complete different office applications, such as data processing and file management, etc. In addition, it can also provide higher security and stability.

4. Intelligent security: As the core computer of the intelligent security system, this industrial pc with touch screen can connect sensors and equipment, and provide various functions such as monitoring, detection and alarm.

5. Visual inspection: With a high-resolution screen and excellent performance, this industrial PC can be used as a visual inspection device to complete multiple inspection applications and obtain accurate results.

6. 3D printer control: The industrial computer is connected to various 3D printers, and as the control core, it can improve the performance and precision of the 3D printer and make your printing effect more excellent.

7. Medical equipment: Computers with high performance can play an important role in various medical equipment, such as electronic medical record management, medical imaging, etc.

8. Public transportation: industrial pc with touch screen can be used in public transportation management systems, such as taxi management, bus GPS positioning, etc. Provide better public transport services to the public by improving operational management efficiency.

9. Power equipment: As the core component of the power equipment management system, this industrial PC can improve the efficiency of power grid monitoring, substation management, etc., and further promote the digital transformation of the power industry.

10. Smart home: As the core computer of the smart home system, the industrial PC can connect various smart devices to achieve intelligent linkage control and help users realize the dream of smart home life.

monitor solution
SOLUTIONS
SOLUTIONS
https://www.gdcompt.com/solution/
SOLUTIONS
SOLUTIONS1
SOLUTIONS
SOLUTIONS
AI in Manufacturing

Product Superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference
