21.5 inch J4125 touch embedded panel pc with resistive touch screen all in one computer

Short Description:

Introducing the 21.5″ Touch Embedded Tablet with Resistive Touch – the perfect solution for businesses requiring high performance computing in harsh environments. This all-in-one industrial PC is designed to withstand harsh conditions while delivering exceptional computing power to support your business operations and increase productivity.

With its industrial-grade components and solid build, this PC can withstand the rigors of heavy industrial use. Equipped with a durable and responsive resistive touch screen and a high-performance Intel processor, the PC provides excellent performance in harsh industrial environments.

The 21.5-inch high-resolution display provides clear visuals, allowing you to easily view important data and application output. The large display area also makes multitasking a breeze, making it easier for employees to multitask without compromising productivity.


Product Detail

Product Tags

Products Video

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product feature:

The sleek and compact design of the embedded tablet makes it easy to install and operate in almost any industrial environment. Its space-saving design makes it an ideal solution for businesses with limited space. Additionally, the PC's embedded design means it can operate without the need for a separate tower or cabinet, further reducing the system's overall footprint.

The Industrial PC is equipped with robust connectivity options, including multiple USB and Ethernet ports, allowing you to easily connect to a variety of devices and peripherals. This makes it ideal for use in manufacturing, warehousing, logistics, and other industrial applications.

Product superiority:

  • Industrial aesthetic design
  • Streamlined appearance design
  • Independent research and development independent mold opening
  • Stable performance and low power consumption
  • Front panel waterproof design
  • Flat panel up to IP65 waterproof standard
  • GB2423 anti-vibration standard
  • Added shock-proof EVA material
  • Recessed cabinet installation
  • 3mm tightly fitted to the embedded cabinet
  • Fully enclosed dust-proof design
  • Greatly improve the service life of the fuselage
  • Aluminum alloy body
  • Aluminum alloy die-casting integrated forming
  • EMC/EMI Anti-interference standard Anti-electromagnetic interference

Product Solution:

Screen All-in-One Industrial solution

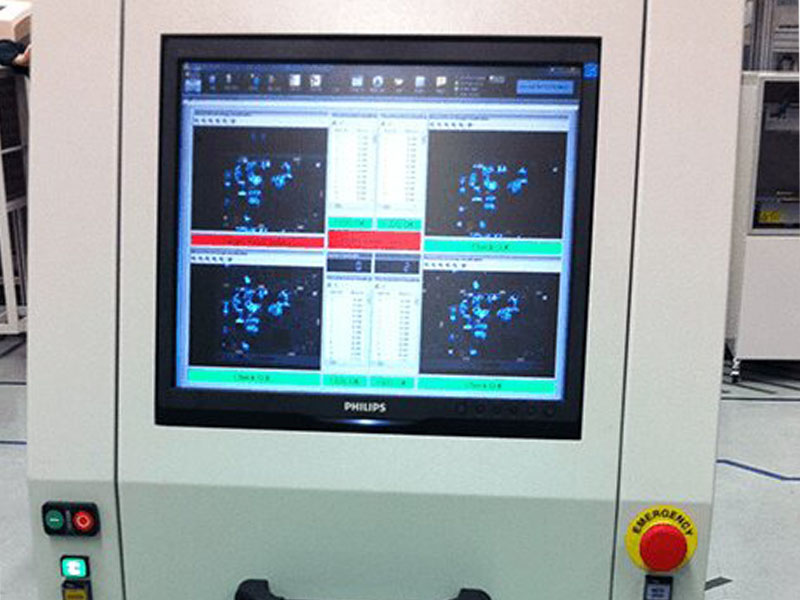

Visual Inspection Equipment1

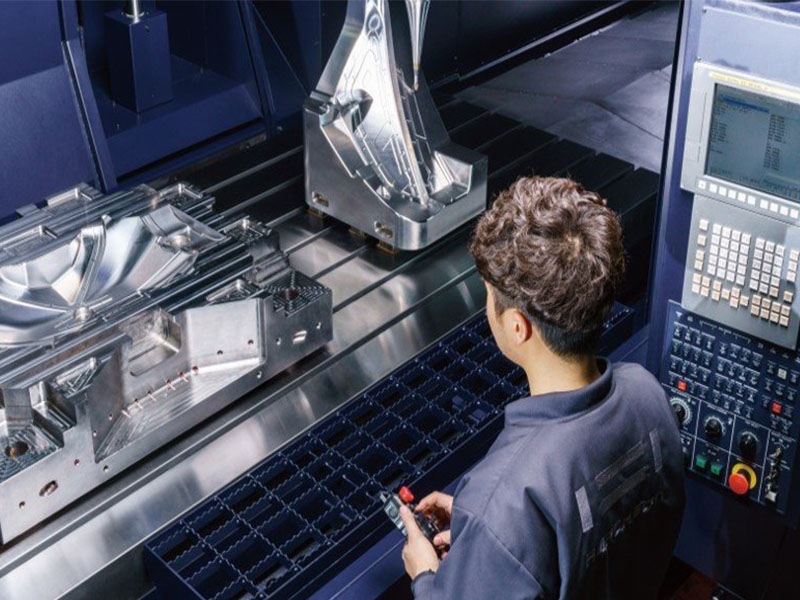

cnc machine 1

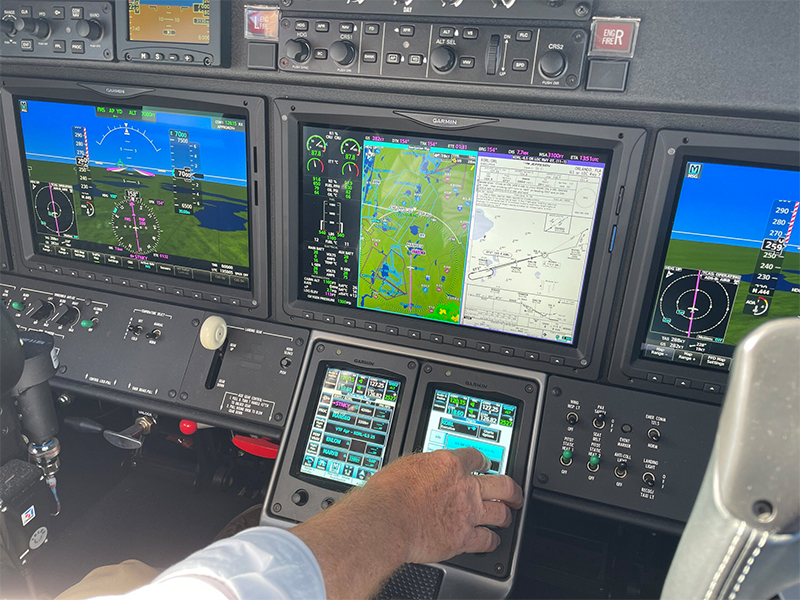

Intelligent Transportation 1

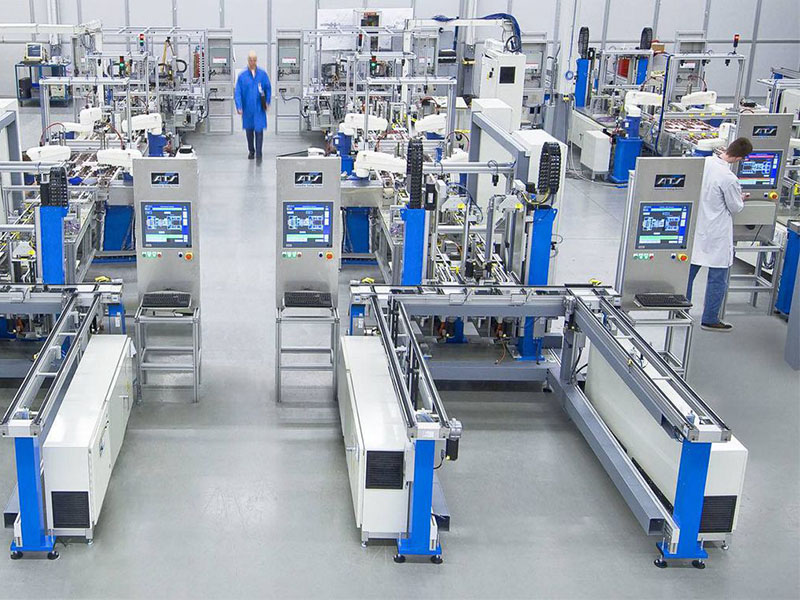

mes
Smart Home Robotics 2
Smart Home Robotics 3

Parameter information:

Display Screen Size 21.5 inch CPT-215PXBC2
Screen Resolution 1920*1080
Luminous 250 cd/m2
Color Quantitis 16.7M
Contrast 1000:1
Visual Range 85/85/85/85 (Typ.)(CR≥10)
Display Size 476.64(W)×268.11(H) mm
Touch parameter Reaction Type Electric capacity reaction
Lifetime More than 50 million times
Surface Hardness >7H
Effective Touch Strength  45g
Glass Type Chemical reinforced perspex
Luminousness >85%
Hardware MAINBOARD MODEL J4125
CPU Integrated Intel®Celeron J4125 2.0GHz quad-core
GPU Integrated Intel®UHD Graphics  600 core card
Memory 4G(maximum 16GB)
Harddisk 64G solid state disk(128G replacement available)
Operate system Default Windows 10(Windows 11/Linux/Ubuntu replacement available)
Audio ALC888/ALC662 6 channels Hi-Fi Audio controller/Supporting MIC-in/Line-out
Network Integrated giga network card
Wifi Internal wifi antenna,supporting wireless connect

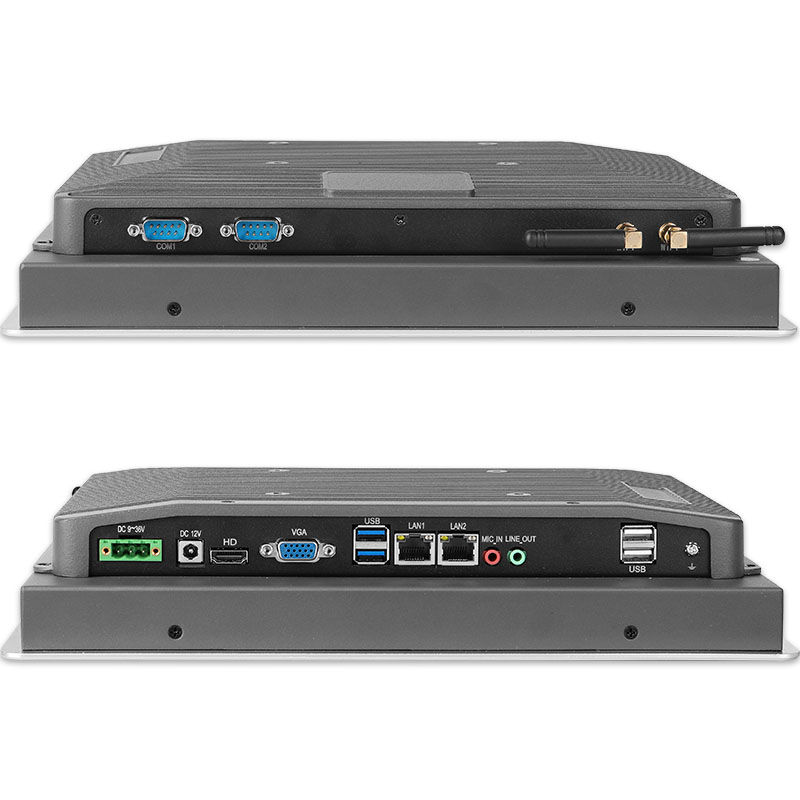

Interfaces DC Port 1 1*DC12V/5525 socket
DC Port 2 1*DC9V-36V/5.08mm phonix 4 pin
USB 2*USB3.0,1*USB 2.0
Serial-Interface RS232 0*COM(upgrade able)
Ethernet 2*RJ45 giga ethernet
VGA 1*VGA
HDMI 1*HDMI OUT
WIFI 1*WIFI antenna
Bluetooth 1*Bluetooch antenna
Audio imput 1* earphone Interfaces
Audio output 1*MIC Interfaces
Parameter Material CNC aluminum oxgenated drawing craft for the front surface frame
Color Black
Power adapter AC 100-240V  50/60Hz CCC certificated、CE certificated
Power dissipation ≈20W
Power output DC12V / 5A
Other parameter Backlight lifetime 50000h
Temperature Working:-10°~60°;storage-20°~70°
Install Embedded snap-fit
Guarantee Whole computer free for maintain in 1 year
Maintenance terms Three guarantee: 1guarantee repair,2guarantee replacement,3guarantee sales return.Mail for maintain
Packing list N.W. 5.5KG
Product size(not in cluding brackt) 560*358*66mm
Range for embedded trepanning 536.3*340mm
Carton size 645*443*125mm
Power adapter Available for purchase
Power line Available for purchase
Parts for install Embedded snap-fit * 4,PM4x30 screw * 4

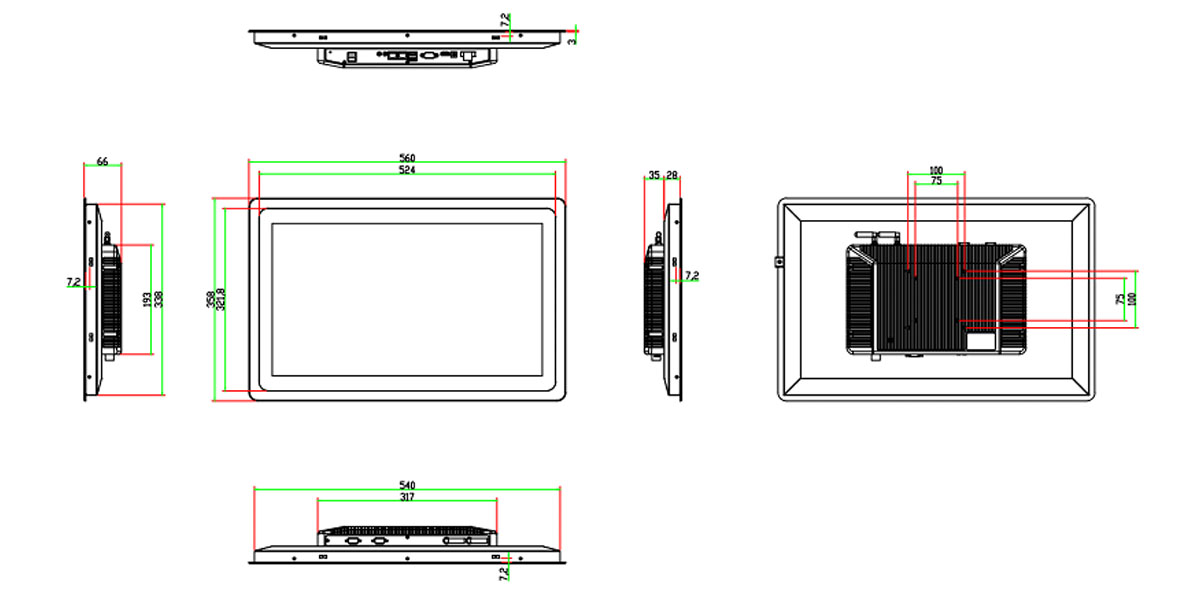

Engineering dimention drawing:

industrial computer21.5
