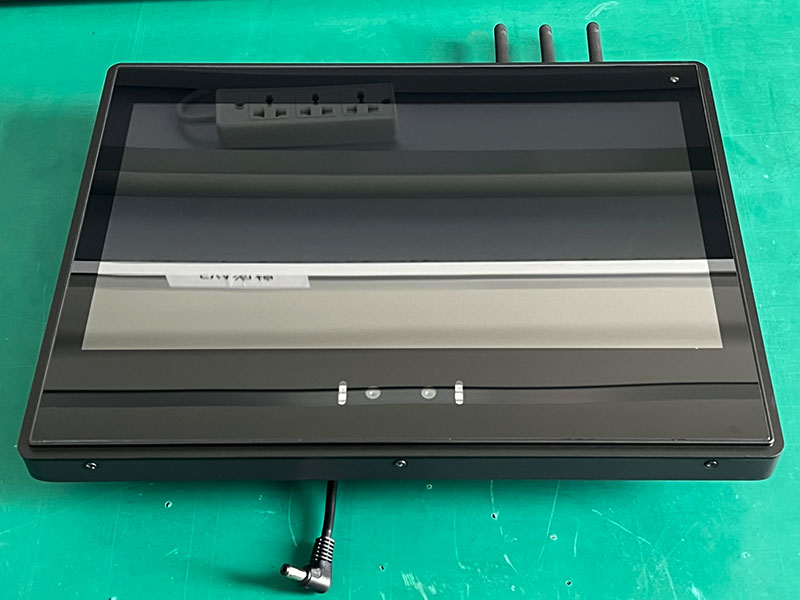

13.3 Inch Open Fram IP65 Touch Screen Android Industrial Panel Pc

Short Description:

  • Screen: 13.3 inch
  • CPU: RK3568, quad core 64 bit Cortex-A55, with a maximum frequency of 2.0GHz (Upgradeable RK3288/RK3399/RK3588…)
  • Resolution : 1280*800
  • Brightness : 250cd/m²
  • Color: 16.7M
  • Camera: Binocular camera
  • Horn: 4 Ω 3W * 2

Product Detail

Product Tags

Products Video

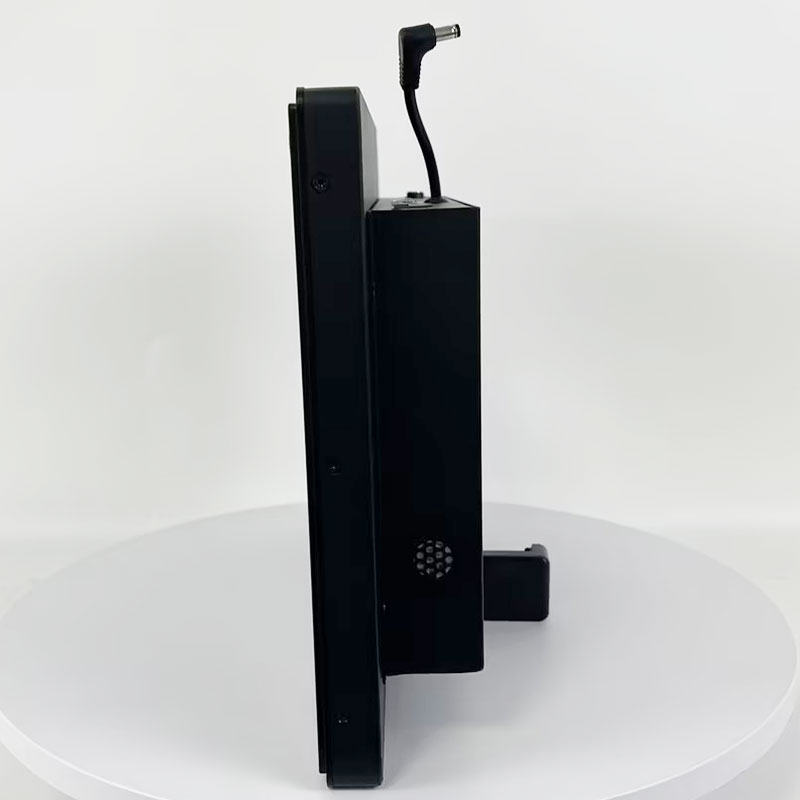

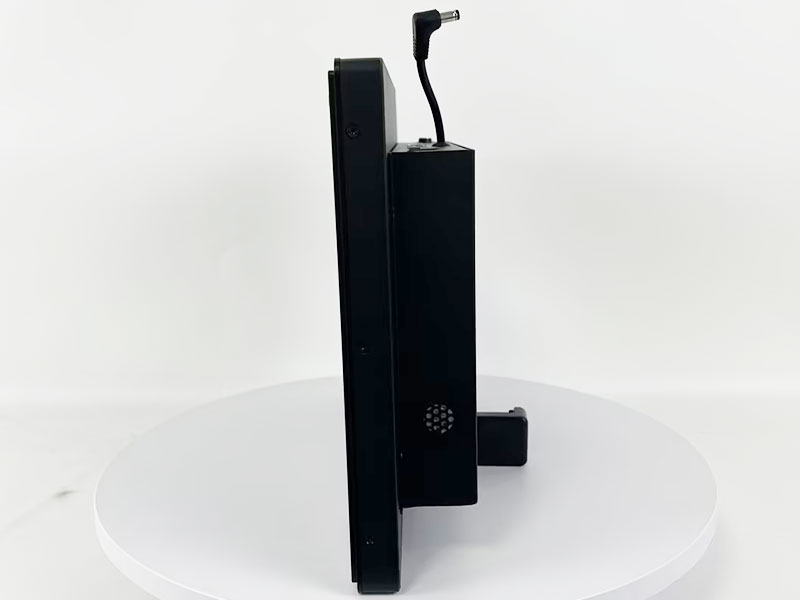

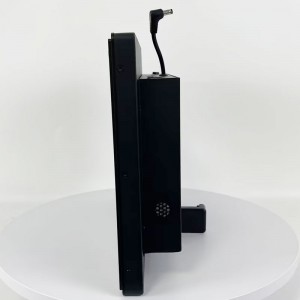

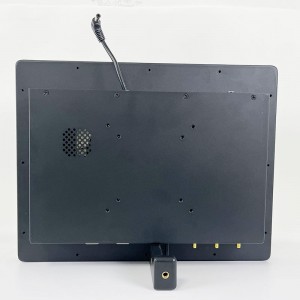

This video shows the product in 360 degrees.

Product resistance to high and low temperature, fully closed design to achieve IP65 protection effect, can 7*24H continuous stable operation, support a variety of installation methods, a variety of sizes can be selected, support customization.

Used in industrial automation, intelligent medical, aerospace, GAV car, intelligent agriculture, intelligent transportation and other industries.

Product Feature:

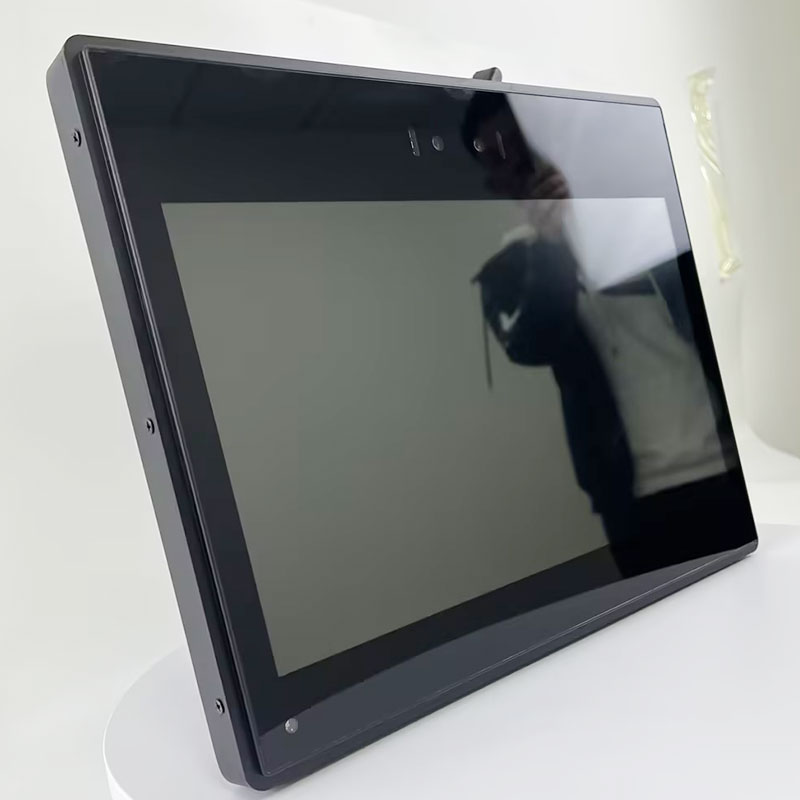

COMPT brand is a company that has been specialising in industrial panel all-in-one PCs for 9 years, and we have newly launched a black embedded Android industrial panel PC. This product has capacitive touch screen with 1920*1080 resolution, high brightness wide temperature screen with auto light adjustment. It is equipped with a large capacity of 2G+16G memory, a true binocular camera and extended WIFI antenna to meet the needs of various industrial applications.

Product Superiority:



  • This Android industrial panel PC also features dual 4Ω 3W speakers, metal switch and wide voltage module built into the machine with DC power supply. It is a powerful, stable and reliable industrial control device that can operate stably in various harsh industrial environments.
  • Compared with traditional industrial panel PCs, this Android all-in-one machine has a more flexible operating system, which not only supports a variety of Android applications, but also supports windows, linux, ubuntu systems, providing users with a more convenient operating experience. At the same time, it also has a higher resolution and higher brightness, which can meet the needs of use in outdoor and bright light environments.
  • In addition, this Android industrial panel PC also has an extended WIFI antenna, which ensures that the device can be stably connected to the network even in a weak signal environment. Moreover, it is also equipped with a binocular camera, which can achieve more accurate image recognition and acquisition, which is very suitable for some industrial application scenarios with high requirements for image recognition.

    In order to ensure that this Android industrial panel PC can operate stably and reliably, we have adopted the design of metal switch and wide voltage module built into the interior of the machine, which can effectively prevent the influence of external factors on the device and ensure the stability and reliability of the device. At the same time, the design of using DC power supply can ensure that the equipment can work normally even in the environment of unstable voltage, and can be customised to meet the voltage standards of different regions and industries.

Product Parameter:

Display Parameter Screen 13.3 inch Other parameters
IO/Interface
material quality Metal craftsmanship
Resolution  1280*800 colour black
Brightness 250cd/m² power dissipation ≈ 15W
Color 16.7M Power input DC12V/4A
Contrast  1000:1 Backlight life 50000h
Viewing Angle 85/85/85/85(Typ.)(CR≥10) temperature Working temperature -10~60 ° C; Storage temperature -20~60 ° C

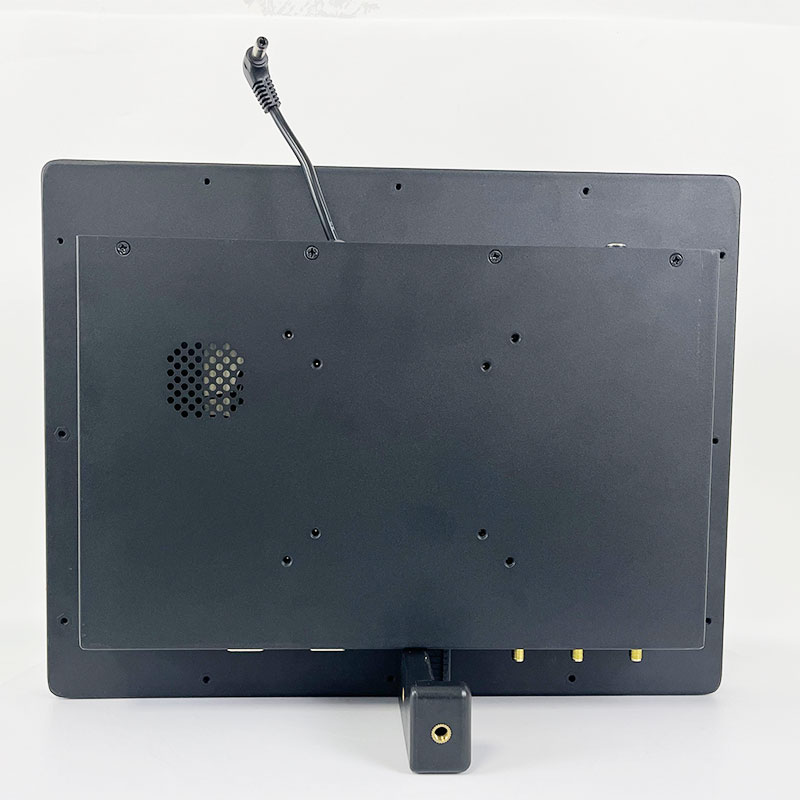

Display area 217.2(W)*135(H)mm Installation method Embedded edge strips, desktop, wall mounted, cantilever, etc
CPU Paramenter CPU RK3568, quad core 64 bit Cortex-A55, with a maximum frequency of 2.0GHz
(Upgradeable RK3288/RK3399/RK3588...)
Warranty One year free warranty for the entire machine
Memory 2G (4G/8G optional) Overall weight ≈ 3.5KG
Hard disk 16G (32G/64G optional) Product size 339.48*239.08*50mm
operating system Android 11 Opening size 254.75 * 172.5 R2.5
WIFI 2.4G Carton Size 436*310*125mm

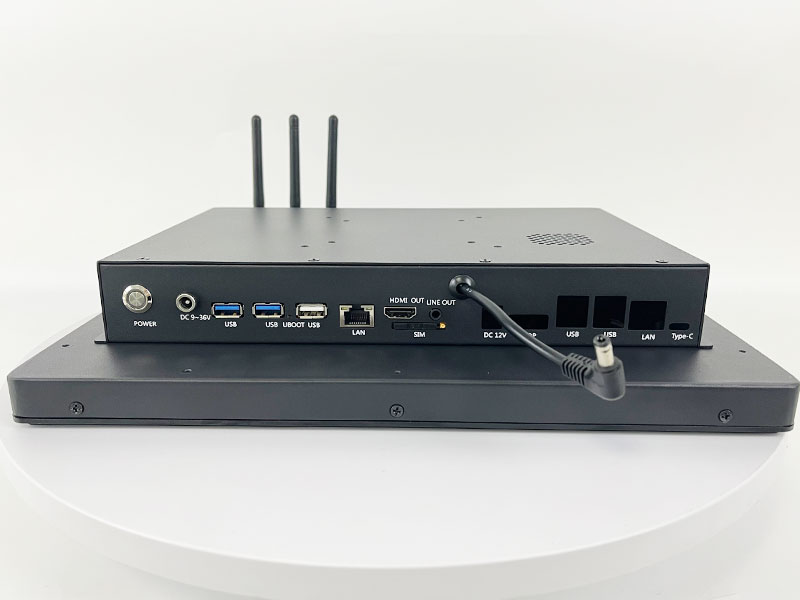

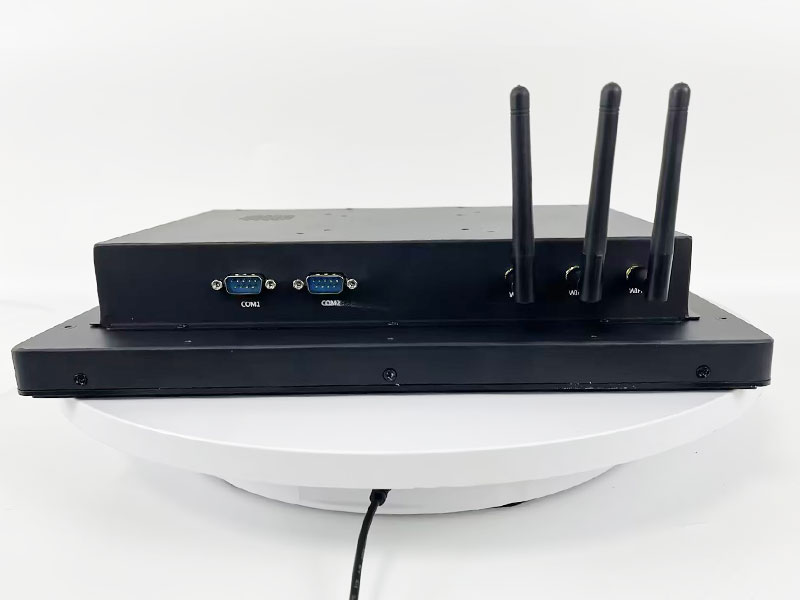

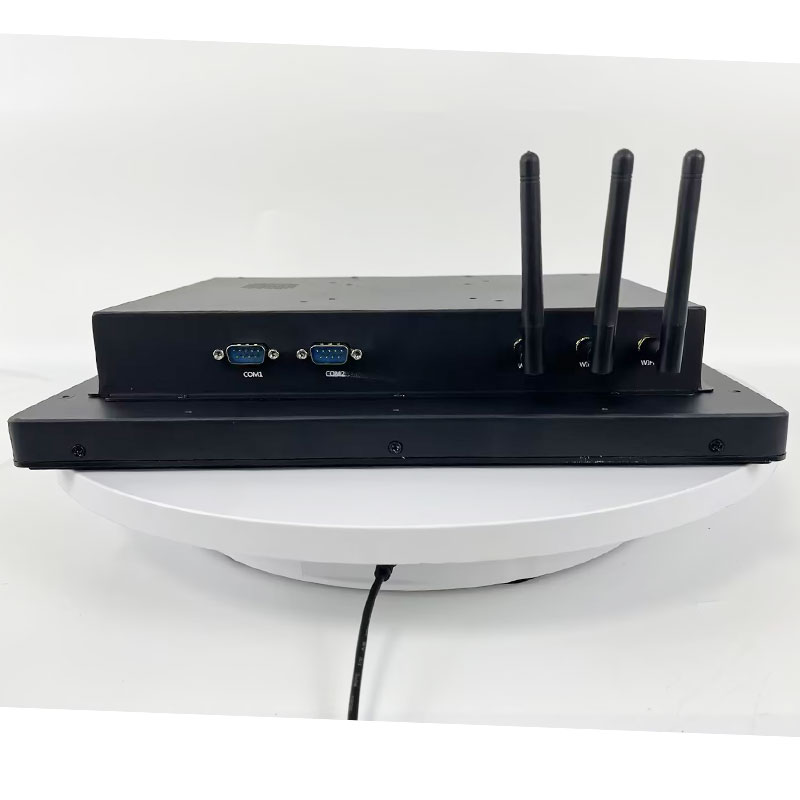

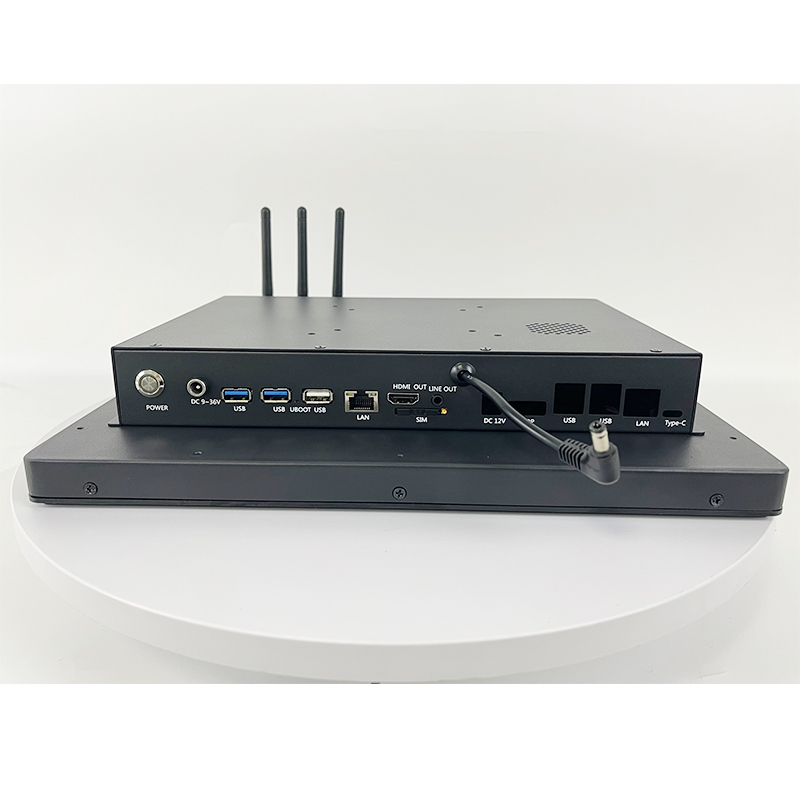

Bluetooth BT4.1 IO/Interface Standard interface 1 * DC12V, 1 * HDMI, 2 * USB3.0, 1 * USB2.0, 1 * RJ45, 1 * 3.5mm audio, 2 * COM (232), 1 * SIM
System upgrade Support USB upgrade

Product Solution:

The series of products developed and produced by the company are widely used in industrial control field, automated intelligent manufacturing, transportation, warehousing and logistics, banks, hospitals, public buildings and venues, intelligent libraries and other industries and places.
